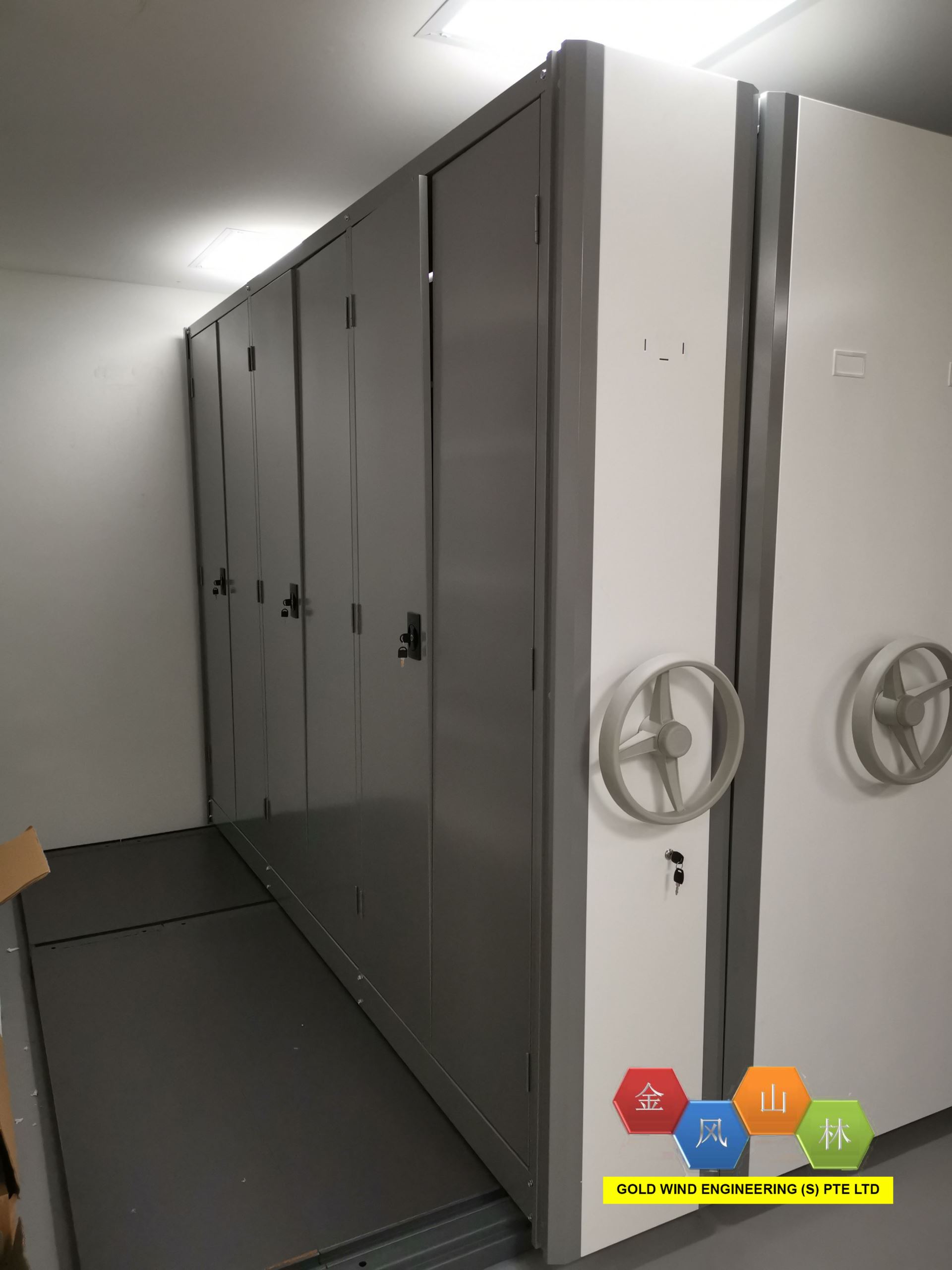

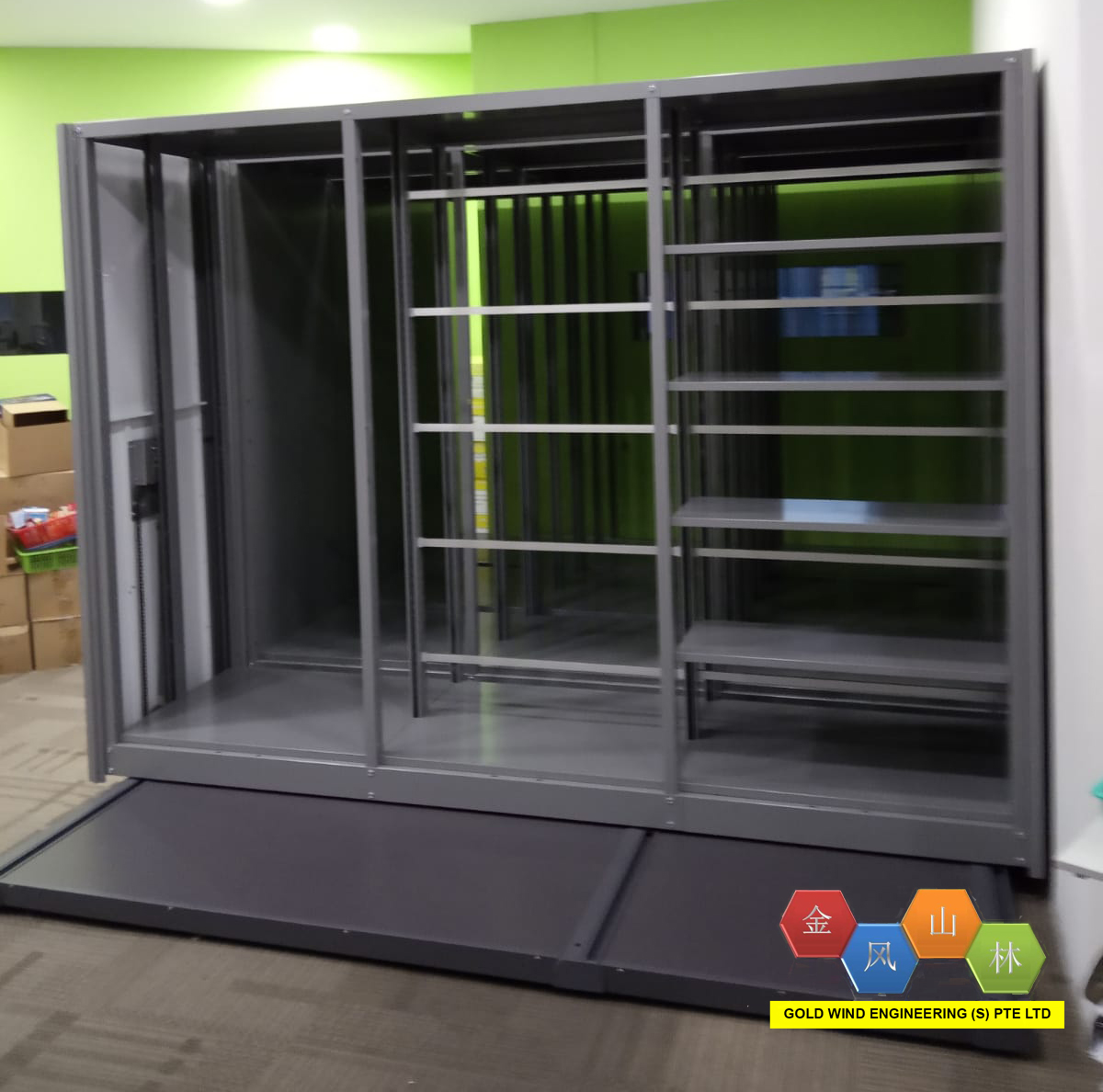

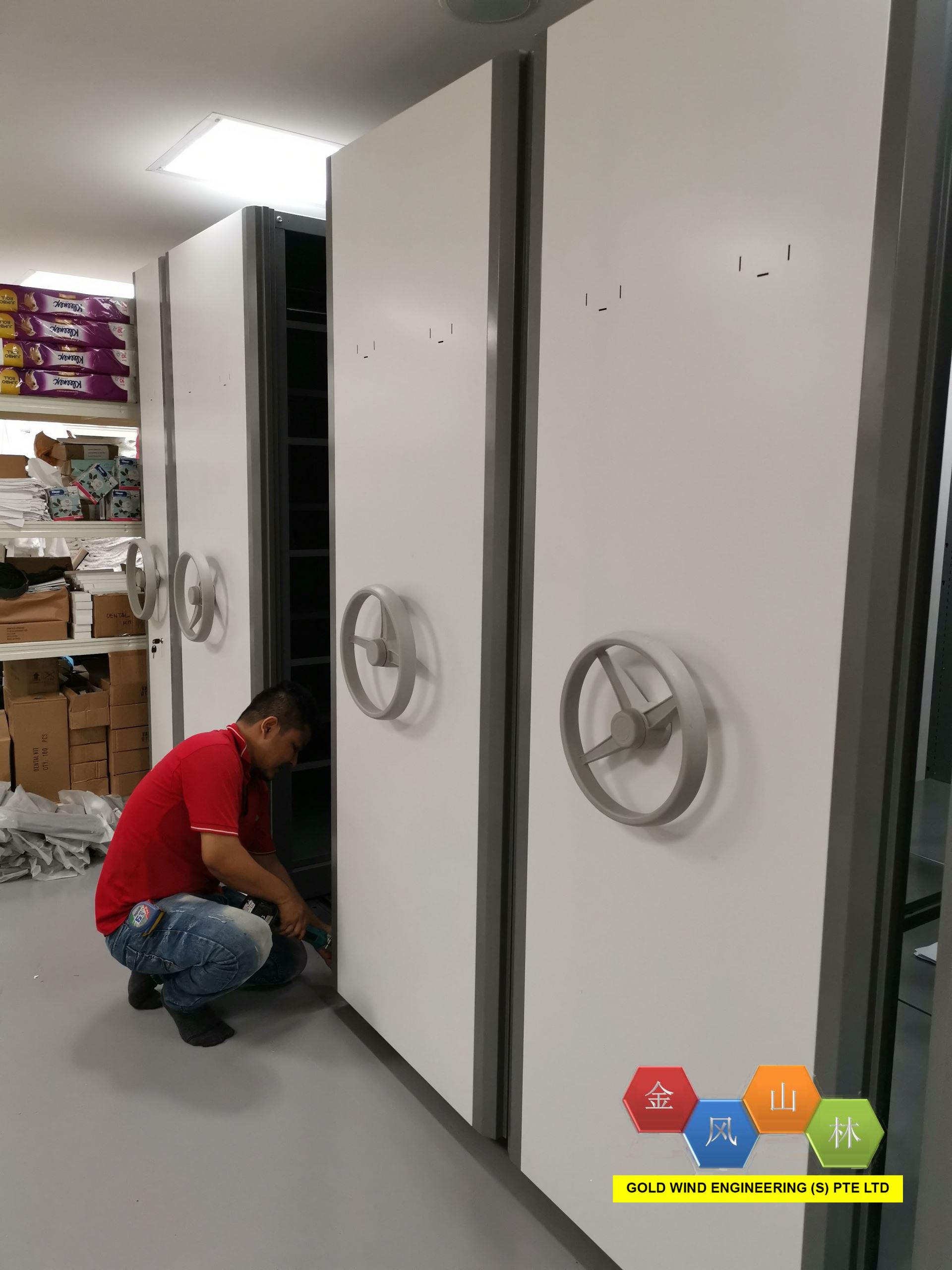

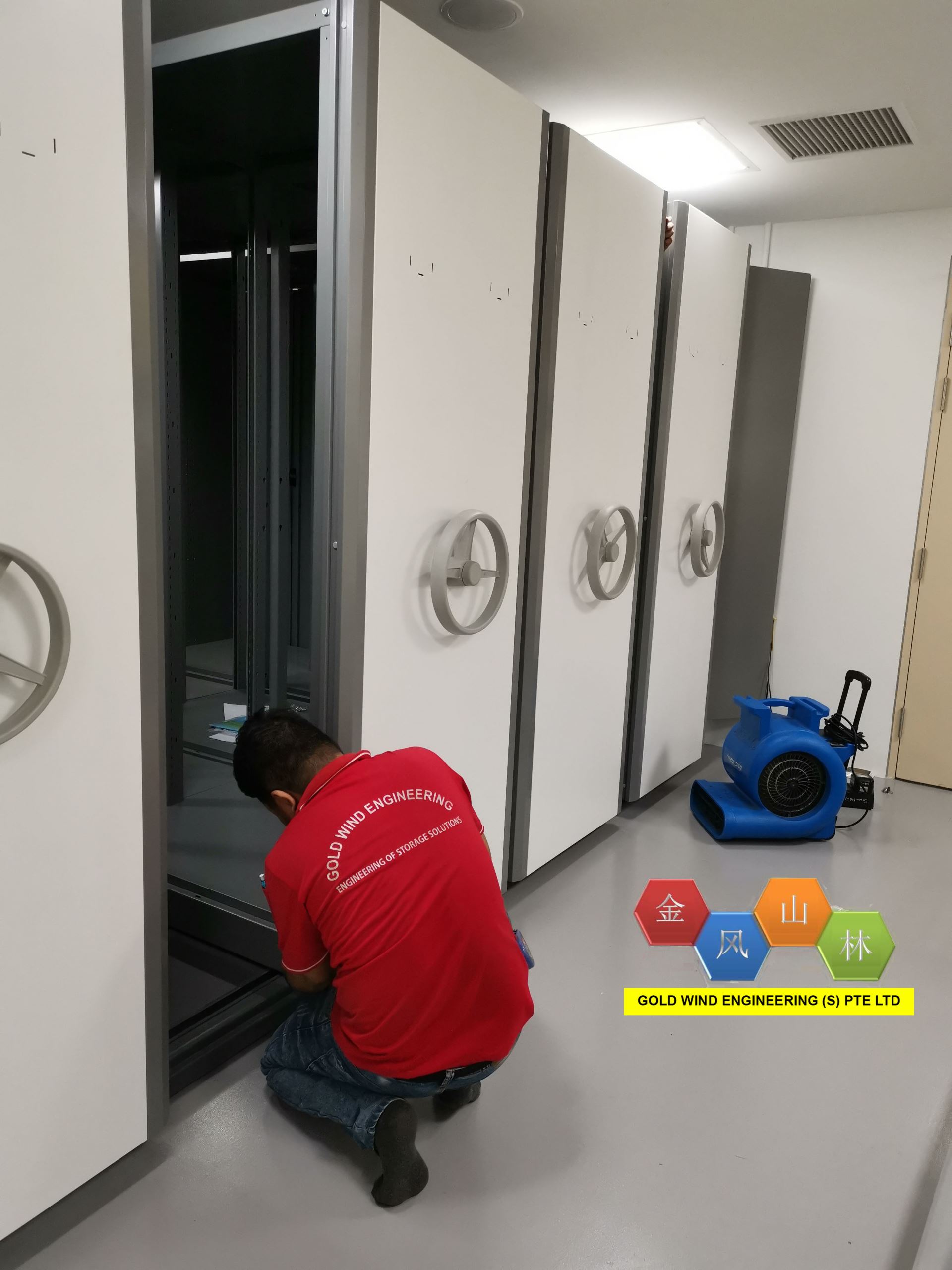

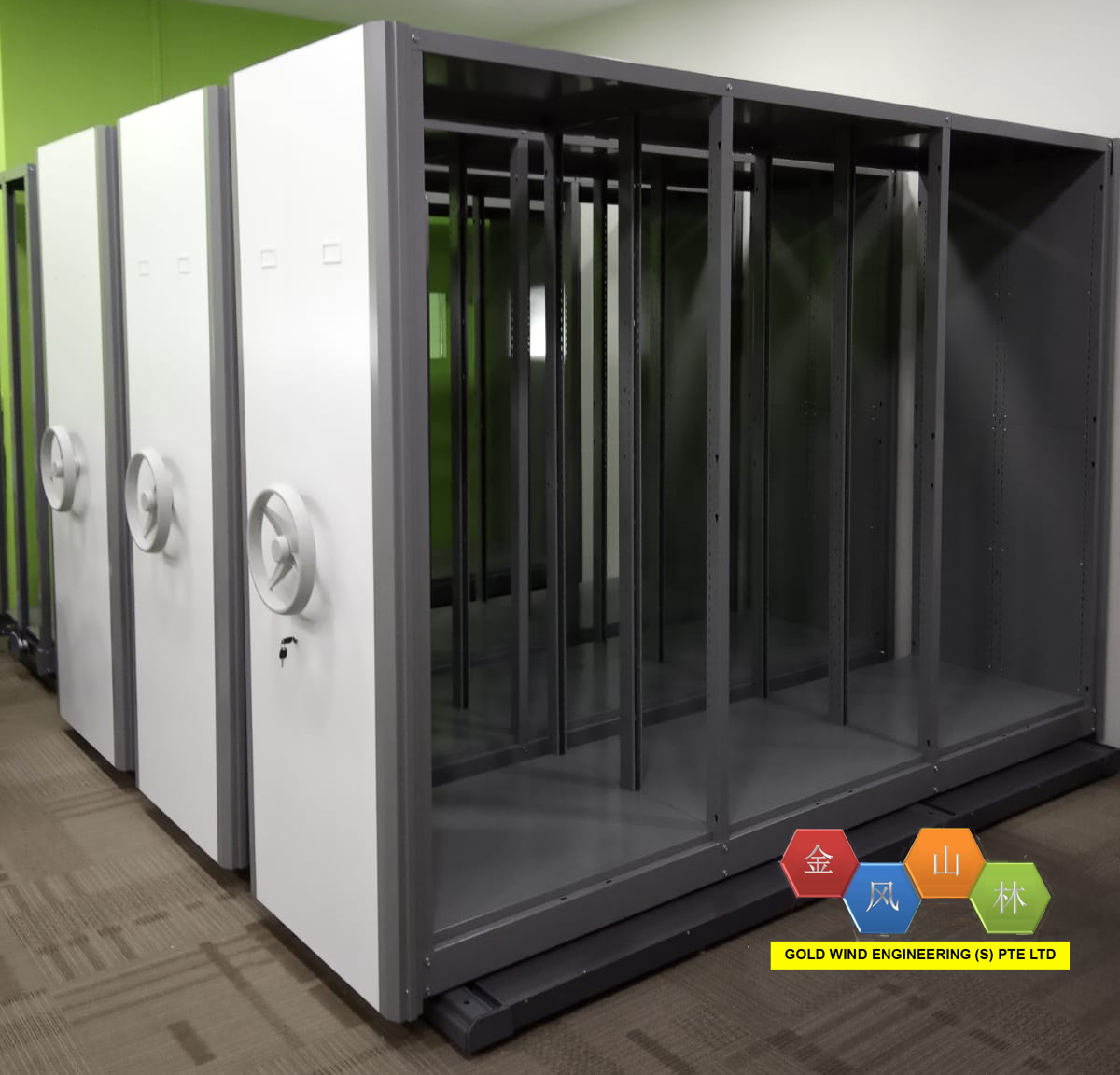

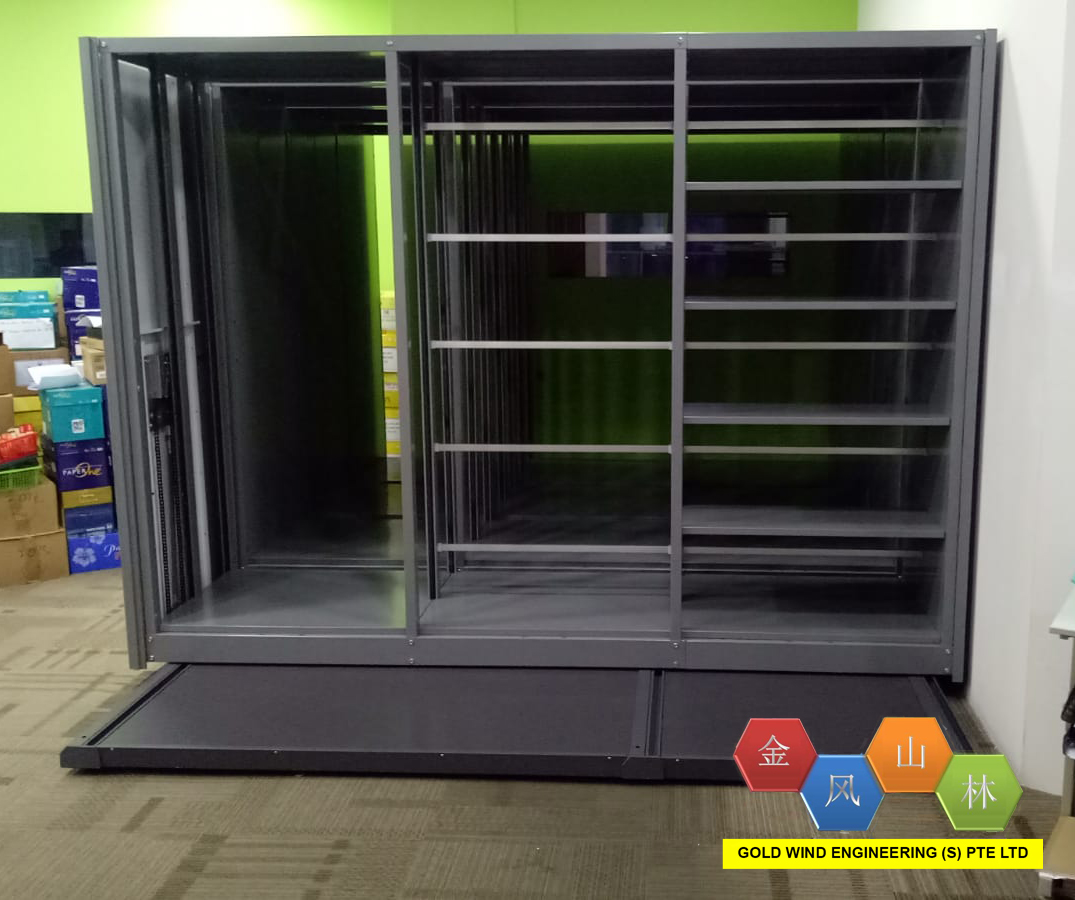

Mobile Compactor

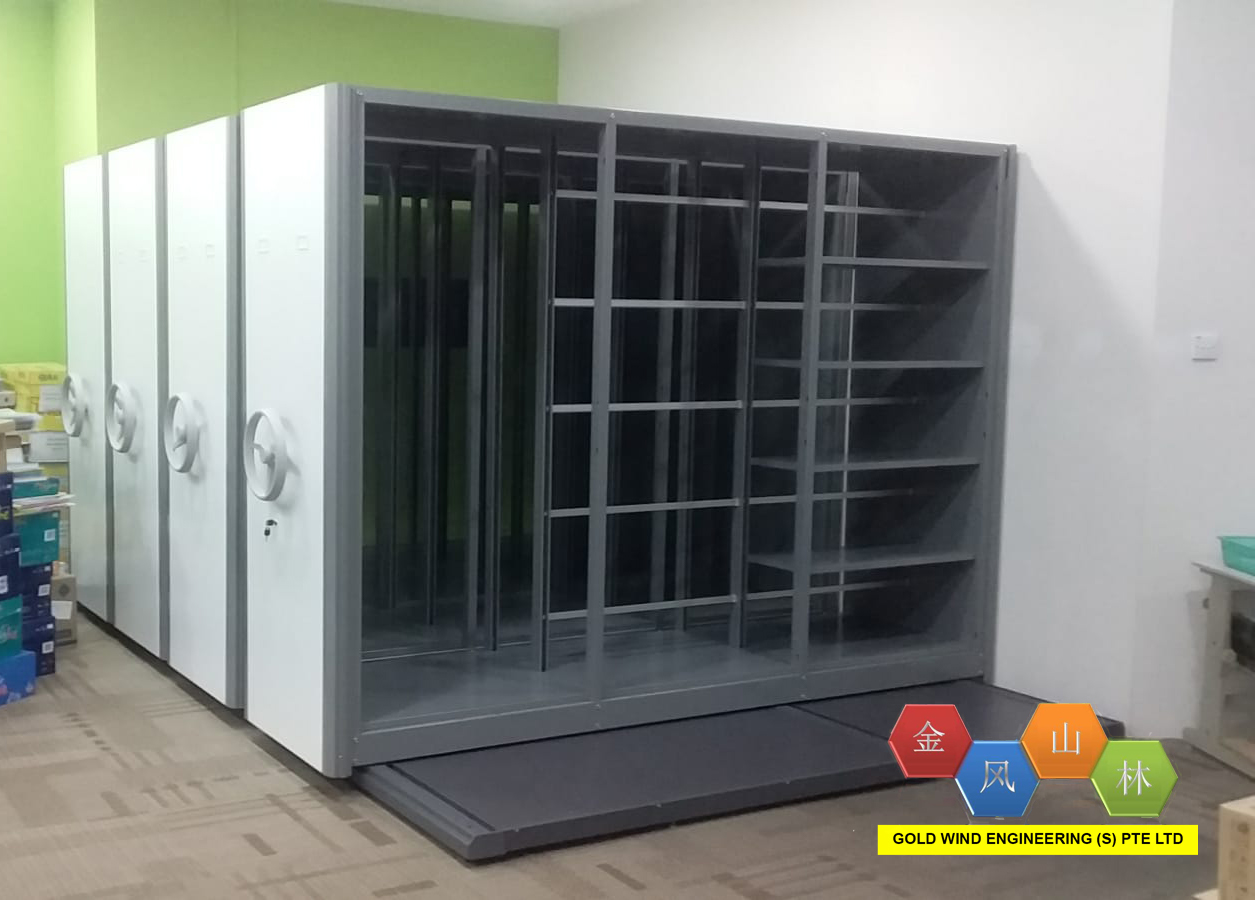

Mobile Compactor System - Mechanical System

Product Description

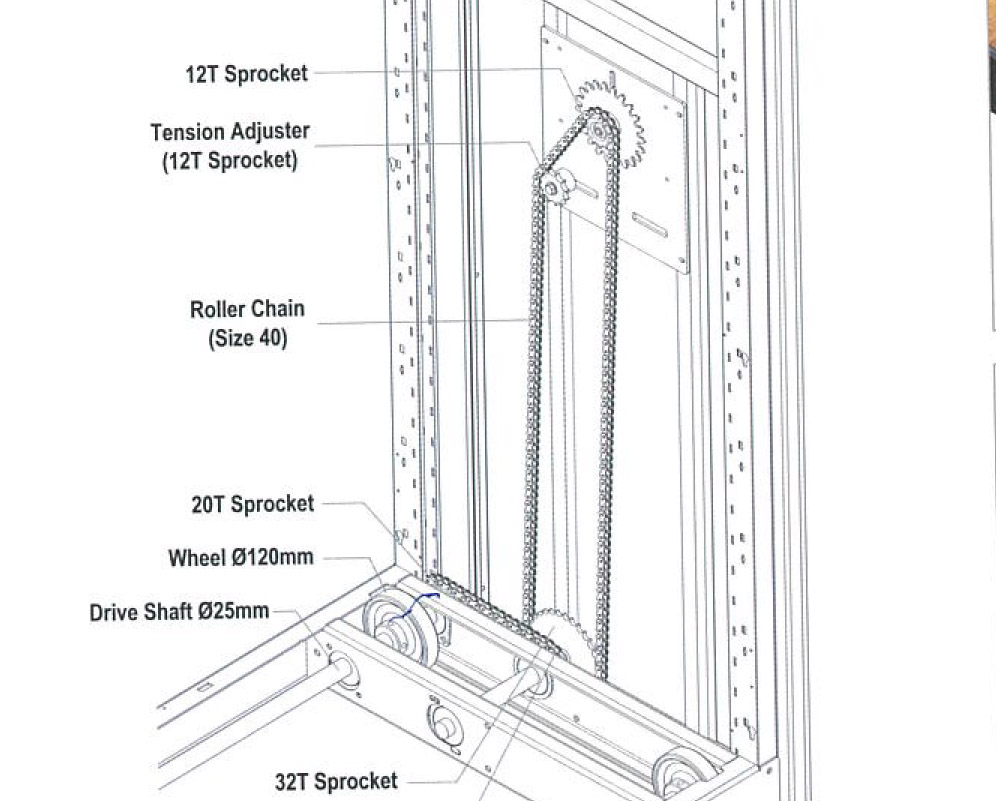

Mechanical mobile compactor is designed using different gear ratio so that the cabinet can be move by generally turning. this design minimizes the power to move a large object. besides gear and roller chains have been tested for the firmness. This is the reason why we can vouch that our mobile compactor can move much smoother and quieter.

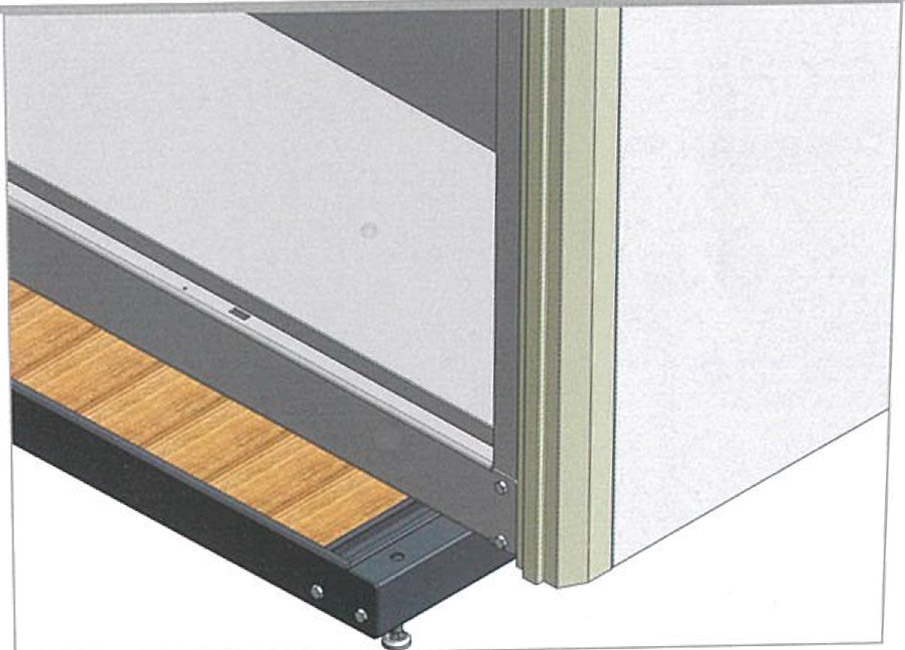

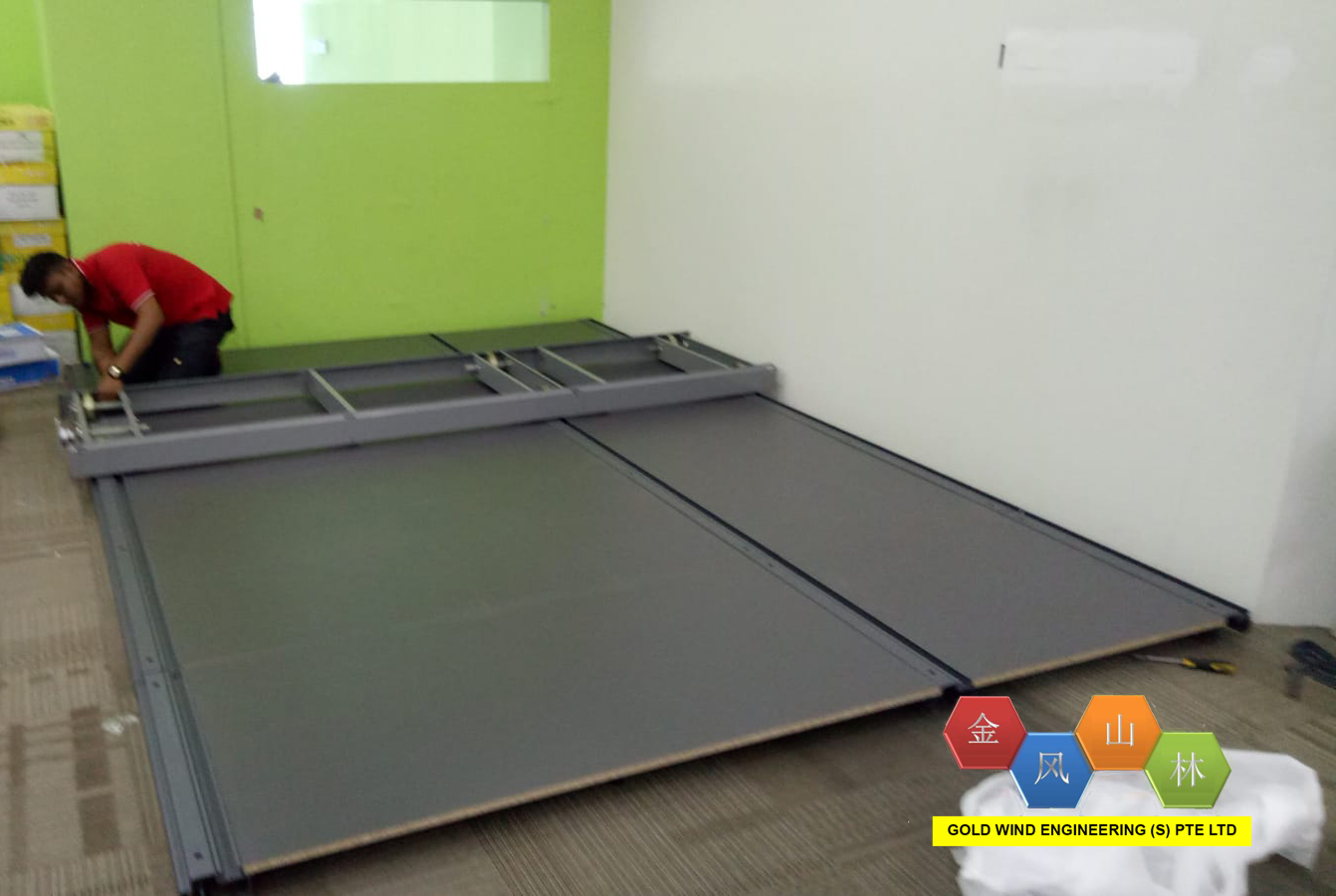

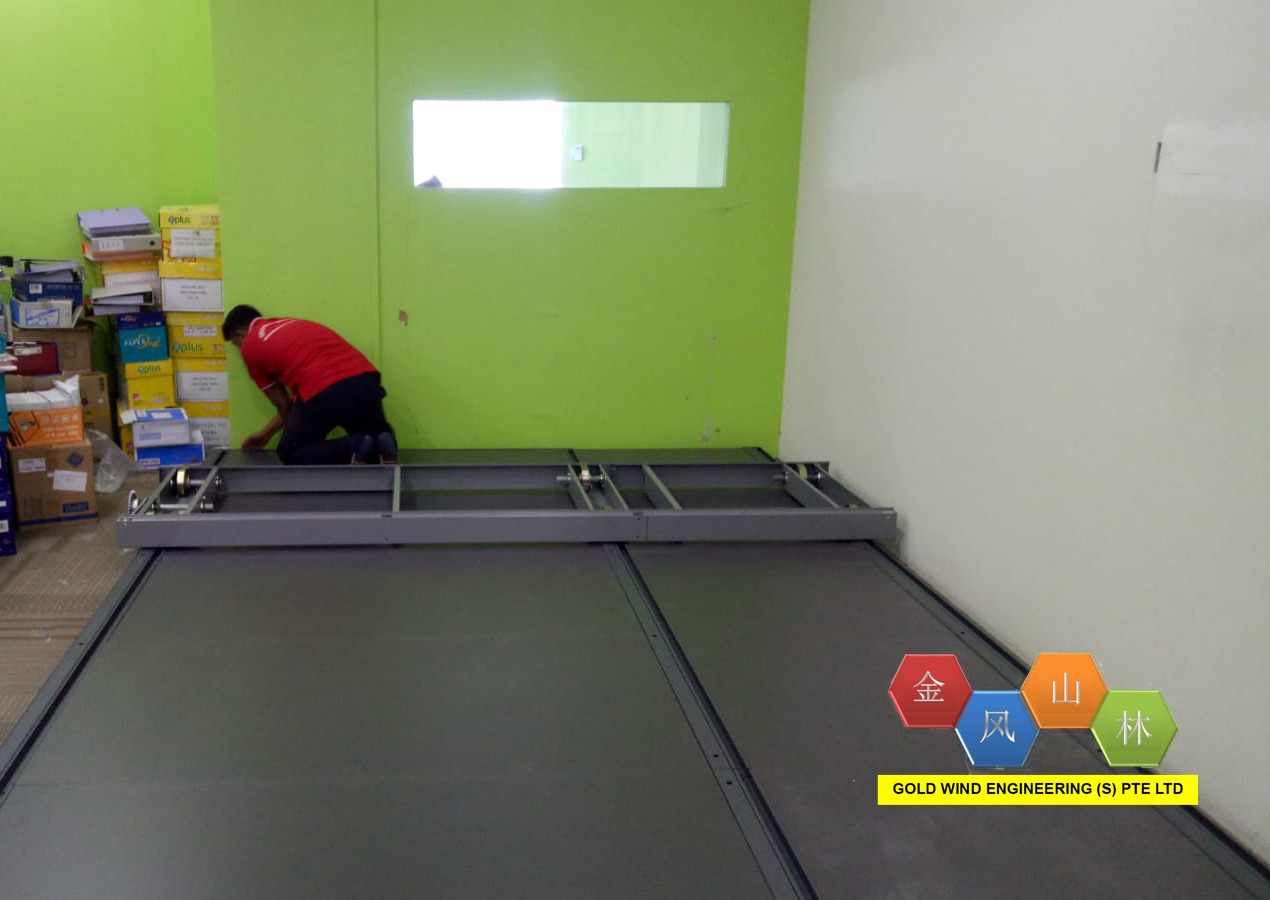

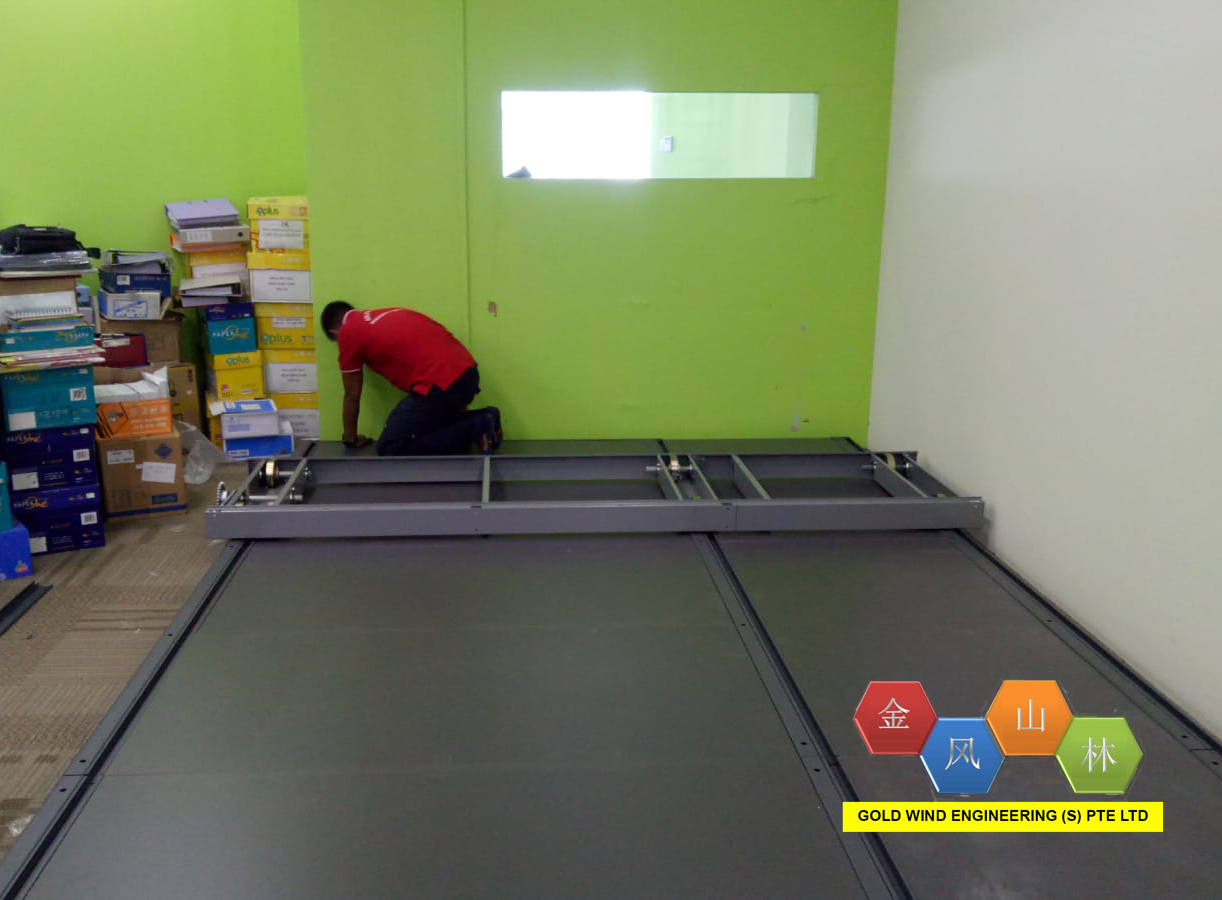

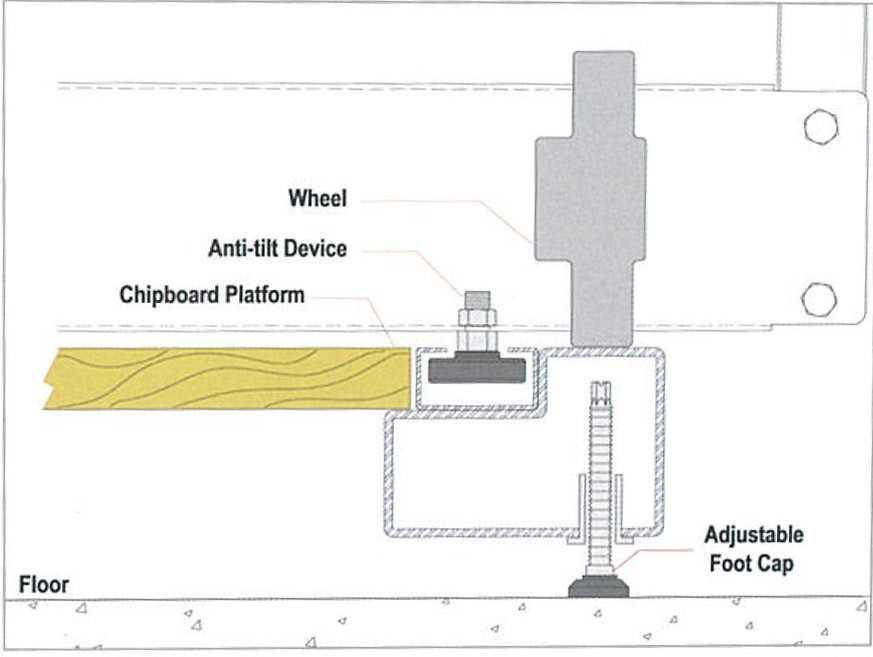

Platform with adjustable foot caps (No drilling required)

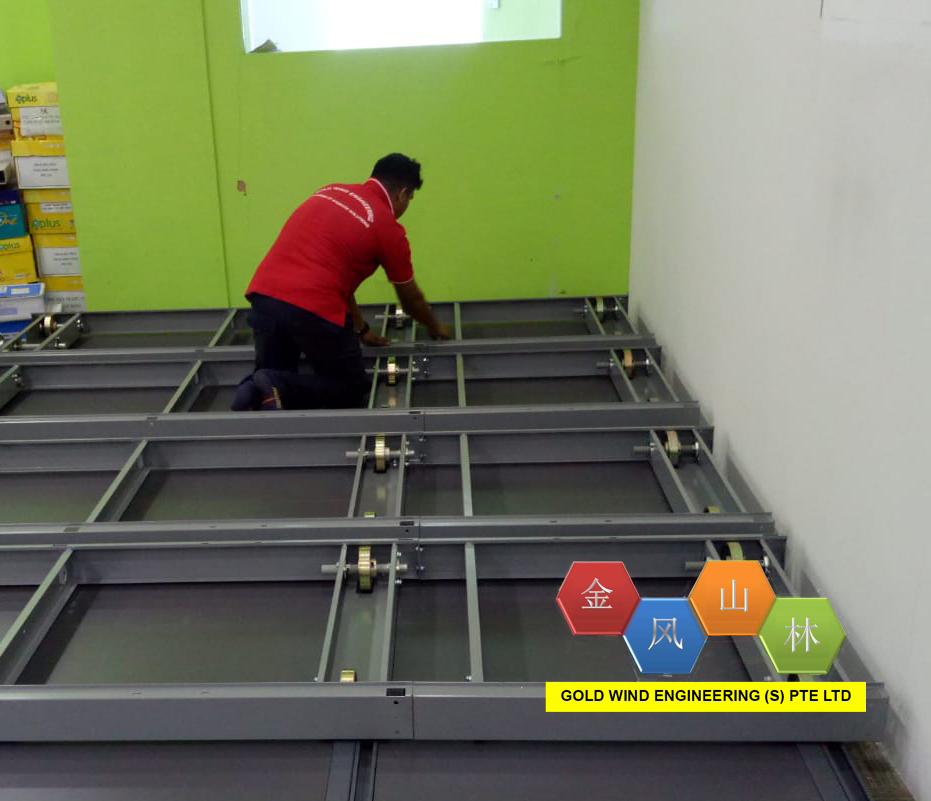

Rails are made of 3.0mm cold rolled steel using laser cut process
Deisonized water rinse Treated follow by Epoxy Powder coating
Heavy Duty Iron die casting wheels with anti rush zinc coating
Central Lock System
Industrial Wheels-Quiet & Strong

Types	Specifications
Material	Cold rolled steel
Finish	Epoxy powder coating
Shelf size	897(W) x 361(D) x 25(H)
No. of shelf	4 pieces per bay
Loading per shelf	70kg UDL
Aisle size	780 / 800mm
Material thickness	Back panel: 0.7mm, Shelf: 0.7mm, Side panel: 0.7mm, Base frame: 2mm, Post: 1.5mm, Top panel: 1.0mm, Front panel: 0.8 / 1.0mm

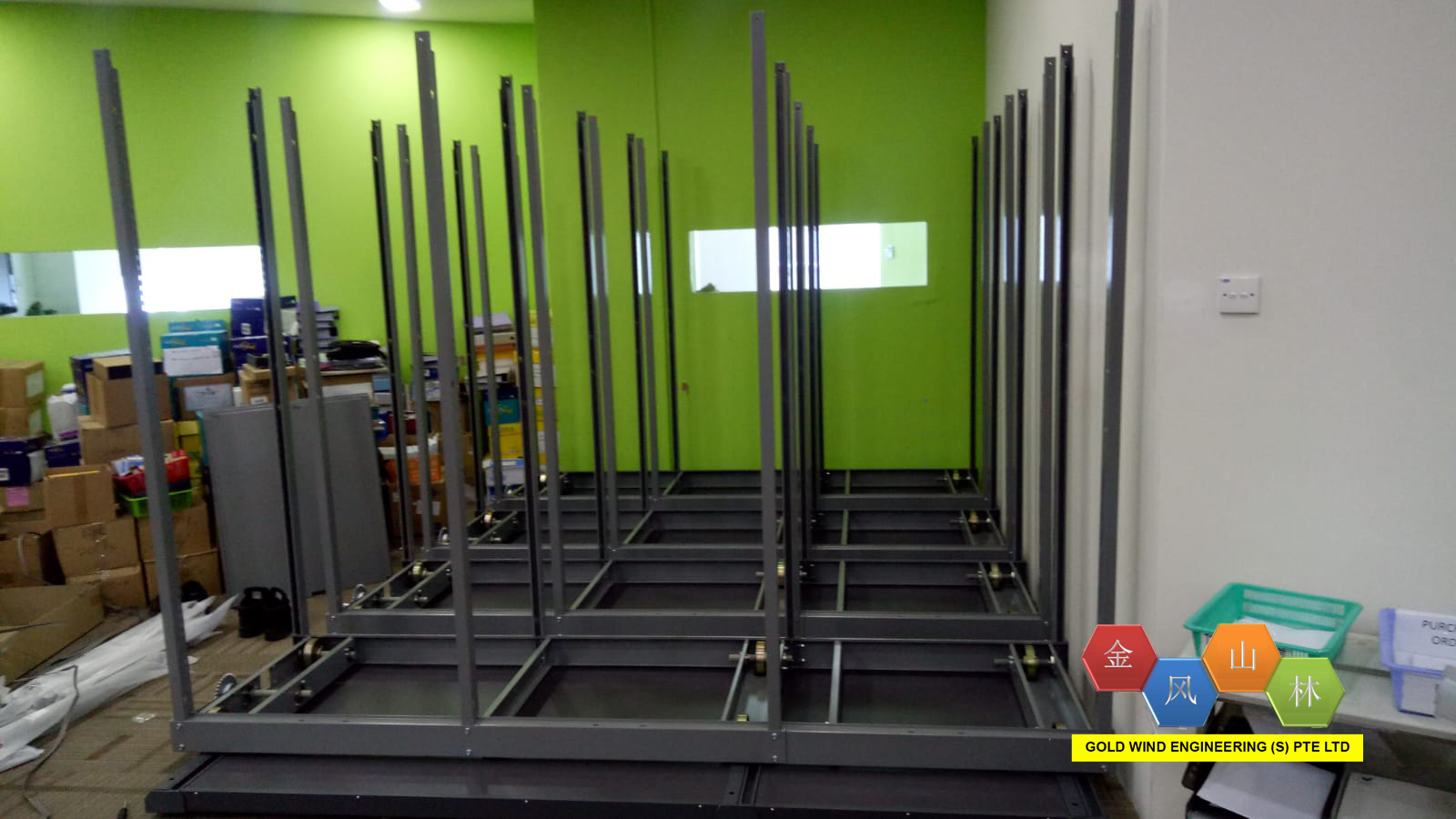

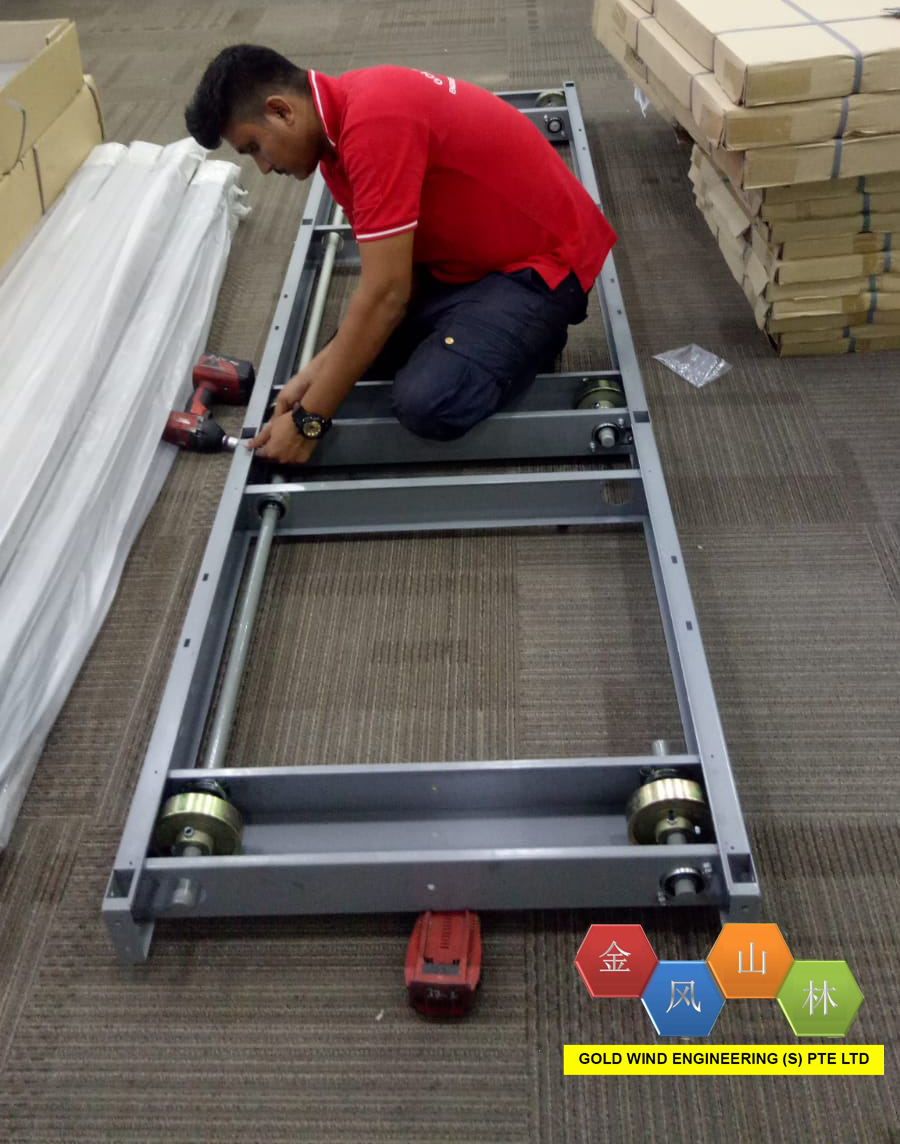

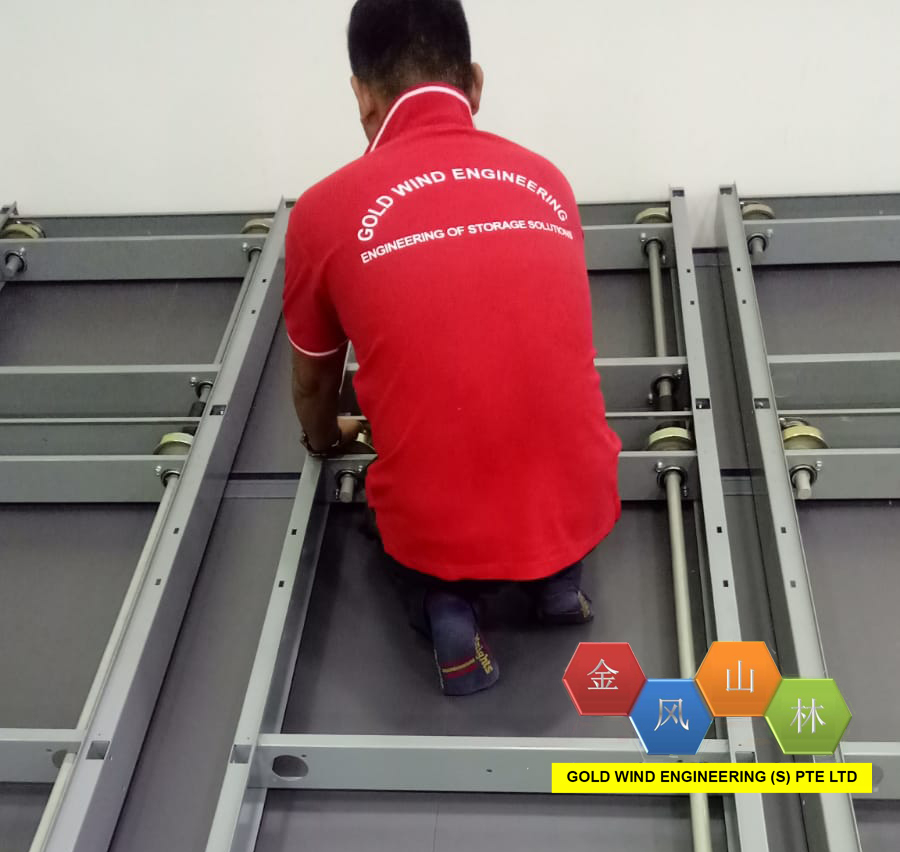

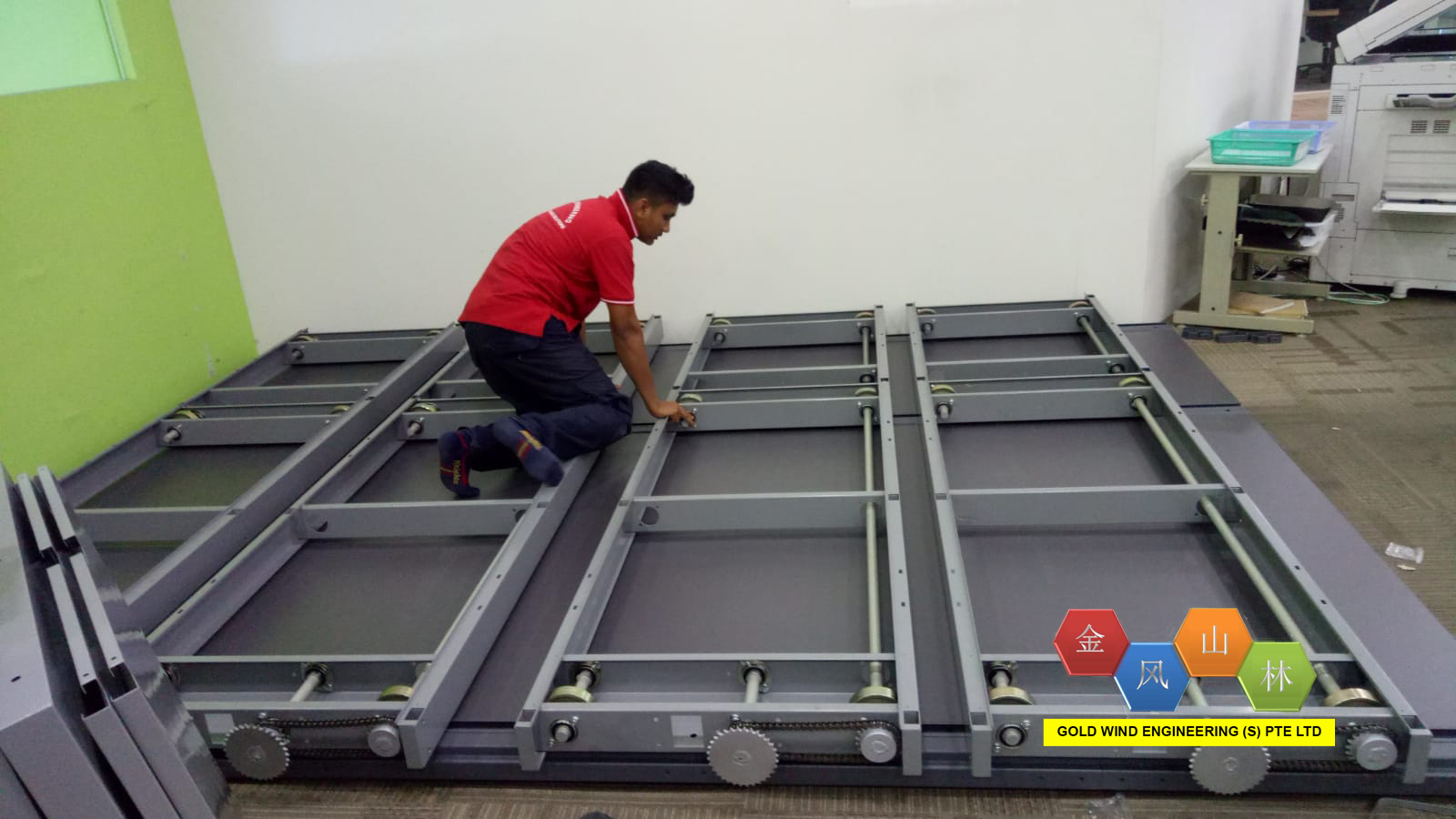

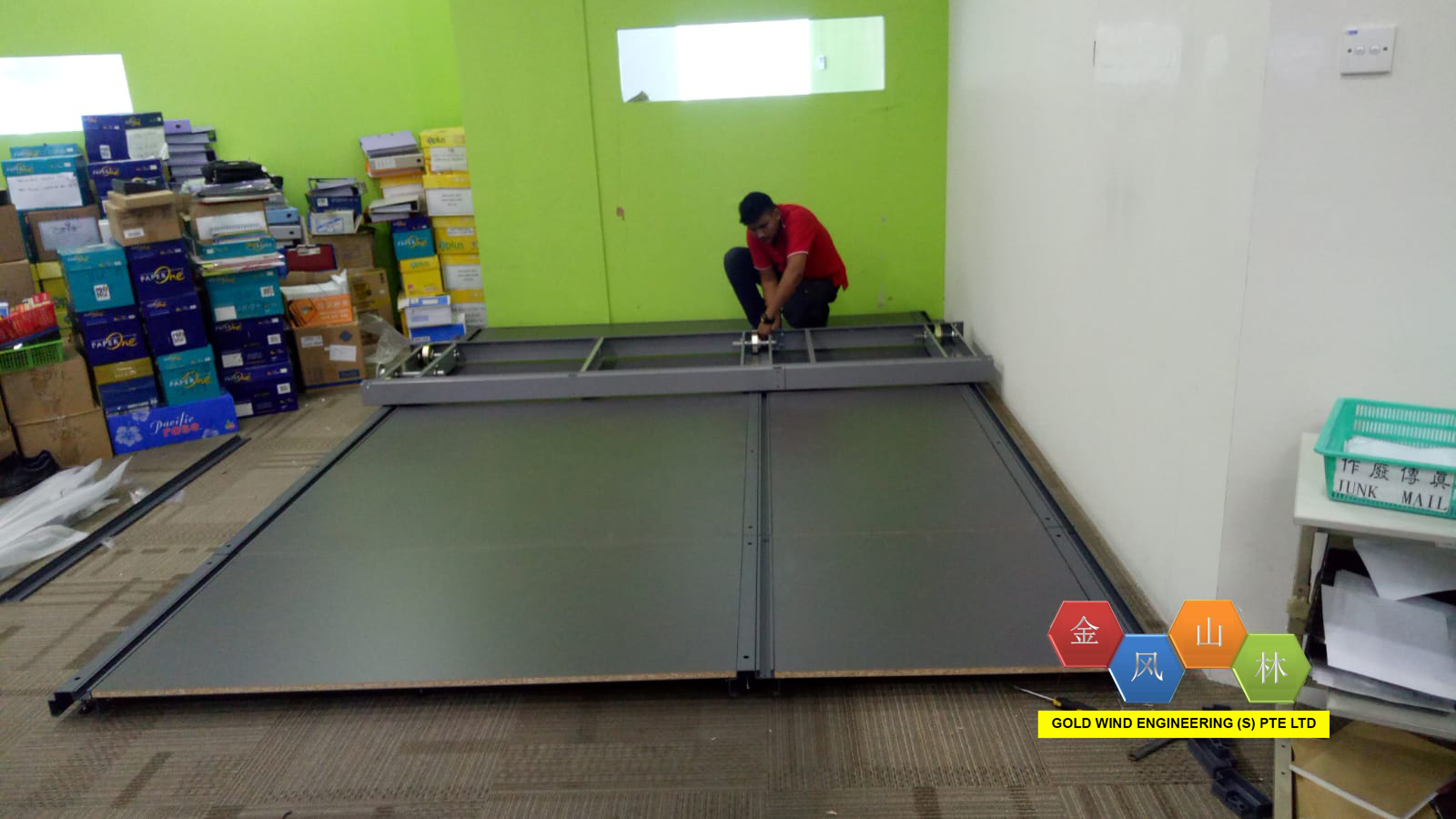

Rail with platform	Rail: 3mm cold rolled steel with laser cut process / Complete with adjustable foot cap, Platform: 18mm chipboard

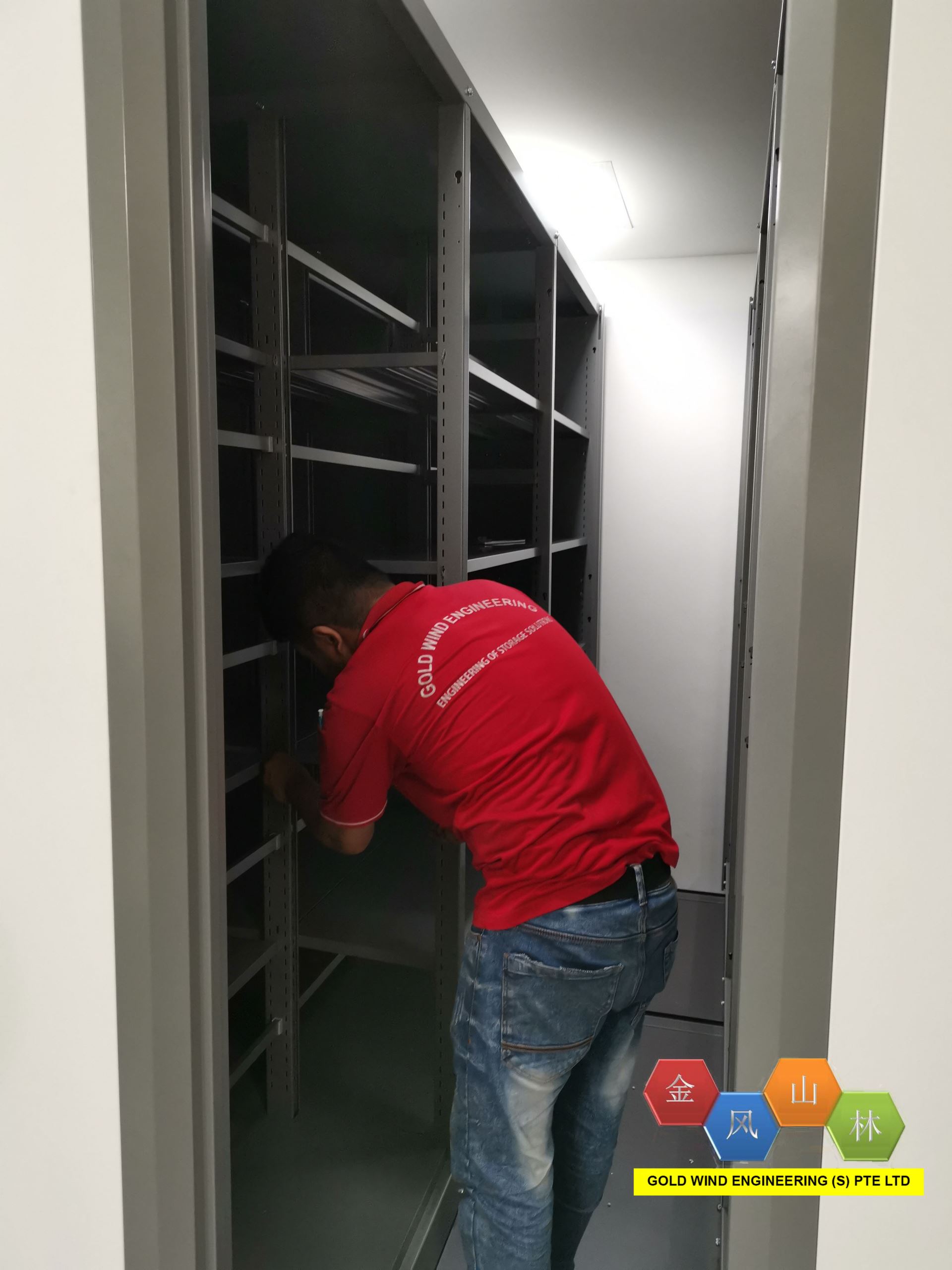

Post	C-channel post with slots in 25mm increment
Anti tilt mechanism	Nylon guide D40mm
Wheel	Iron die casting with anti-rust zinc coating, Loading: 1000kg / wheel
