Stack Rack

Stack Rack

Product Description

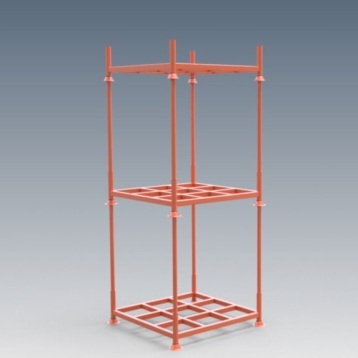

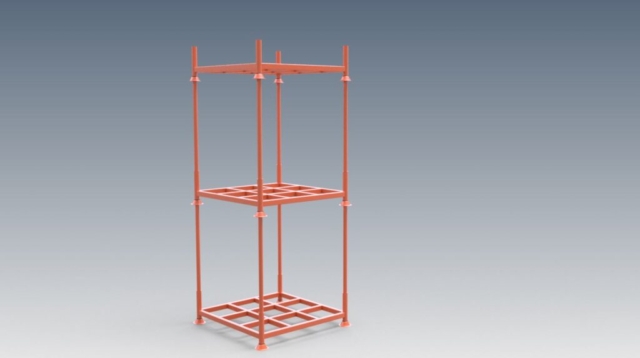

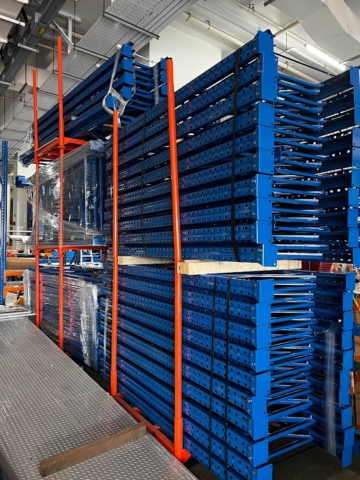

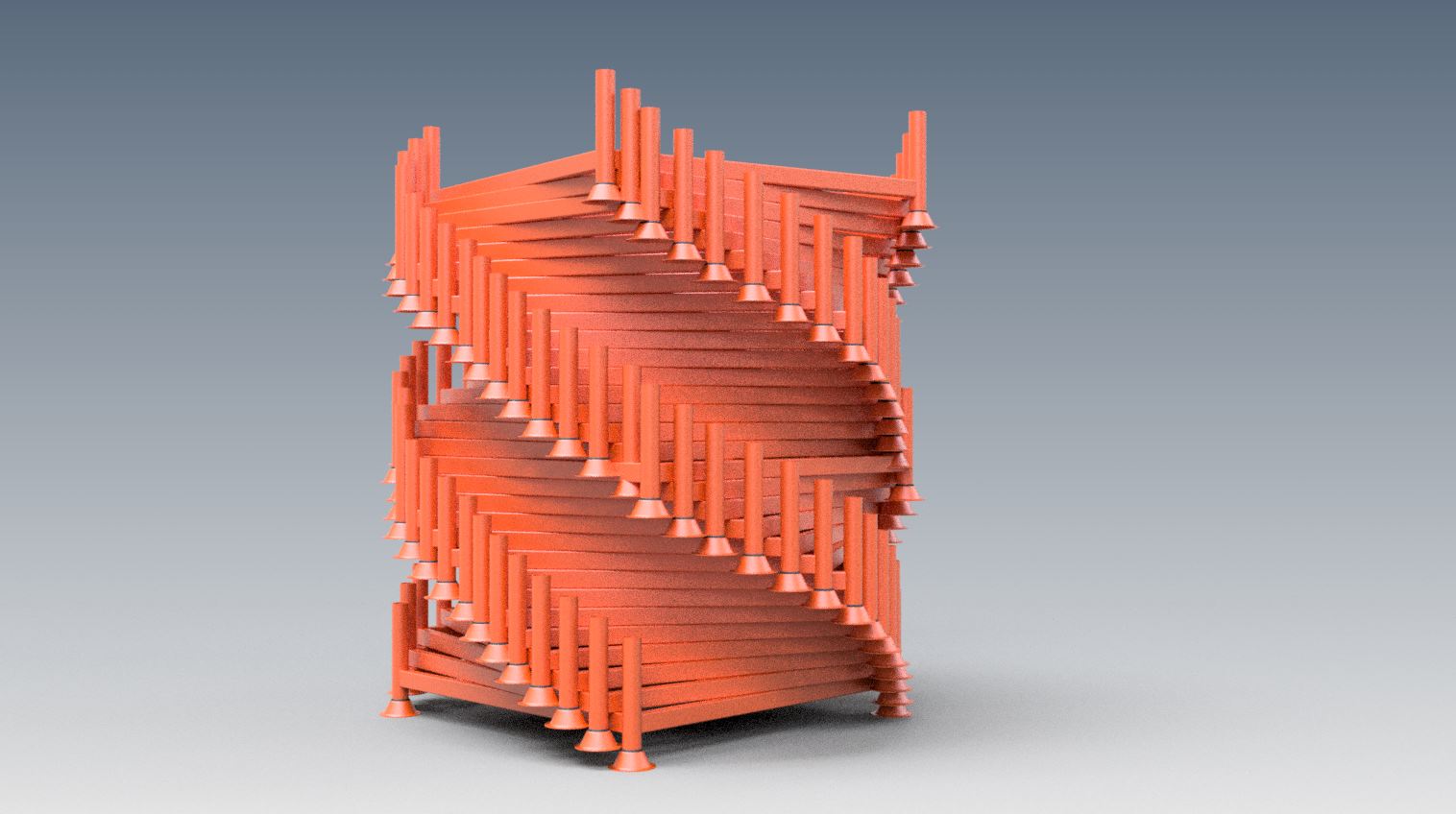

Stacking racks are the most flexible industrial storage racks in the industry. Rather than dedicate floor space to permanent systems and the aisle space necessary to serve the, use portable stack racks to maximize storage density. Portable Stack Racks are stackable 4.5meter high and can be knocked down when not in use. They consist of a base and removable posts or end frames. These portable stack racks save floor space by utilizing air space and the stack racks also make excellent shipping racks & tire racks.

Bulk stacking can damage your inventory. Staking racks help you to maximize your floor space by bulk stacking without the damage.

We carry tons of stacking racks because you we know your racking needs are as unique as you. Some of our most popular choices include carpet pad racks, nestable racks, shipping racks and stacking u-racks. All of these industrial storage racks help to maximize floor space. Whether you need to store long, unwieldy materials, such as tubing or piping or large materials like tires or engines, we have a stacking rack for you.


SKU 132-SR-1313-H1500#
Product Name Open Stack Rack 4 Ways Entrance
Size (mm) 1300 (W) x 1300 (D) x 1500 (H)
Base 9 Holes with 4 Triangle Support
Materials RHS 60 x 40 x 2.0T
Weight 65 kgs
Overall Size 1480mm x 1480mm
Static Load 2,000 kgs
Stack Load 1500kgs UDL Up to 3 Stack
Color Epoxy power coated in orange
* Others customized size available upon request.
