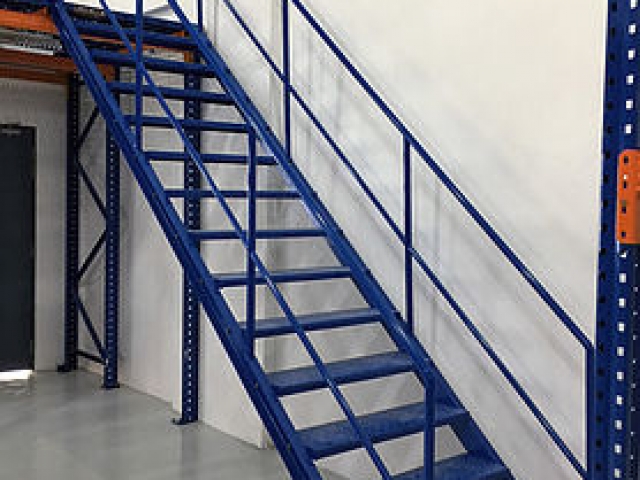

Industrial Staircase

Industrial Staircase


  • Origin: Malaysia
  • Materials: Steel
  • Finishing: Epoxy Powder Coated In Blue.
  • Handrail: 33mm Hollow Steel Pipe
  • Tread Size: 900mm (W) x 250mm (D) x 50mm (H)
  • Weight: 350 kgs

Product Description

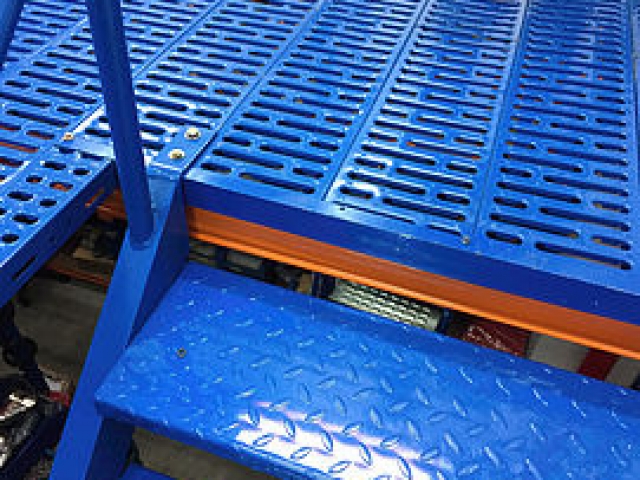

Gold Wind Industrial Staircase system designed with 2 safety handrails. Staircase included closed tread steps with open riser Staircase Structural are made of C-Channel 100 x 50 x 3.8t.

Cutomer make required special epoxy powder coated colour as per request.

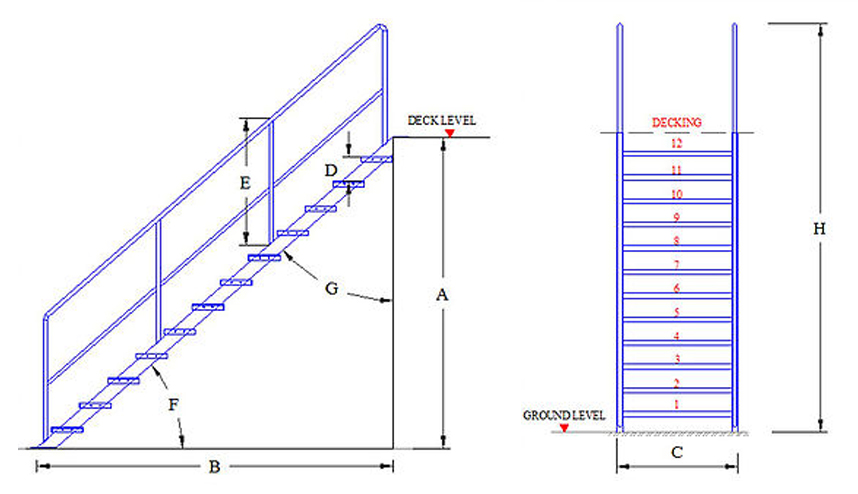

Industrial Staircase

Size 12 Steps 13 Steps 15 Steps
Size (A) - Deck Height 2465mm 2765mm 3065mm
Size (B) - Base Length 2836mm 3181mm 3526mm
Size (C) - Staircase Width 1000mm 1000mm 1000mm
Size (D) - Tread Height 195mm 195mm 195mm
Size (E) - Handrails Height 1003mm 1003mm 1003mm
Size (F) - Bottom Degree 41° 41° 41°
Size (G) - Top Degree 49° 49° 49°
Size (H) - Overall Height 3365mm 3514mm 3814mm
SKU 01-IS-2410 01-IS-2710 01-IS-3010
