Efficient and safe installation.

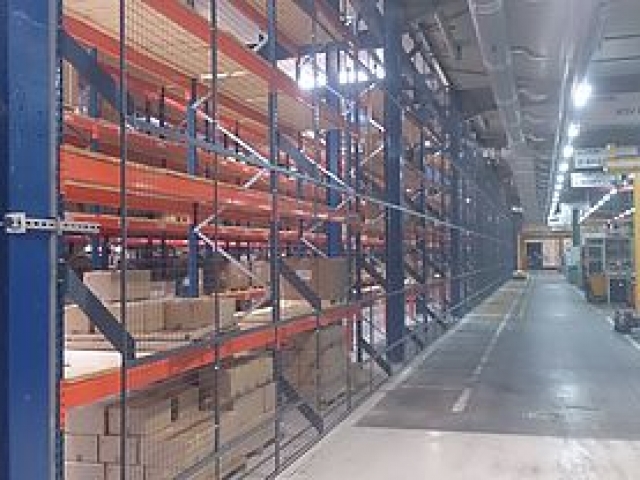

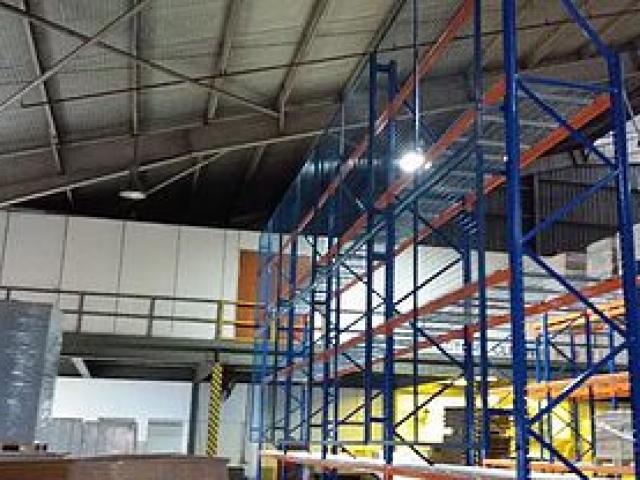

The unique design of Gold wind’s protection rear mesh prevents goods from falling out and causing injury to personnel or damage to goods beneath. The steel mesh is fitted to the rear or to the side of the pallet racking.
The panels are usually assembled from the outside with clamps and sheet metal screws. This reduces the assembly time significantly, the panels are then bolted together to give the desired width and height. Heights are available in intervals of 50 x 50 mm, the width of the end panels is cut to suit on site and finished using bracket connect to the racking.
|
|
|
| |
Benefit of Rear Mesh
|
- Prevent injury by falling small object from the racks
- Safety and protection against property
- Improve look of storage area
|
| 01-RM-2027 |
| 2000mm (h) x 2700mm (W) |
| Angle Bar 50 x 50 x 3.0mm Thk |
| Blue (Roller Painted) |
| M10 x 20 Bolt & Nuts Connect to back of the racks |
| 50mm x 50mm x 3.0mm (10g) |
| 38mm x 38mm x 3.0mm x 2 pcs (Reinforcement) |
|
|
 |
|
|
| 01-RM-2013 |
| 2000mm (h) x 1350mm (W) |
| Angle Bar 50 x 50 x 3.0mm Thk |
| Blue (Roller Painted) |
| M10 x 20 Bolt & Nuts Connect to back of the racks |
| 50mm x 50mm x 3.0mm (10g) |
| No |
|
|
 |
|
| |
