Palletainer

Palletainer


  • Origin: Malaysia
  • Column: Square Hollow Section 50 x 2.3t
  • Base: Square Hollow Section 40 x 1.9t
  • Finishing: Epoxy Powder Coating
  • Loading: 1000kgs UDL Per Palletainer
  • Max Stack: Total 3 stack from the top and bottom

Product Description

Palletainer are commonly used in the factory or cold storage area to carry materials or products.

The unique designed of the palletainer allowing stack up to 3 hight and also combine into 1 block when for easy controal the free space of the warehouse.

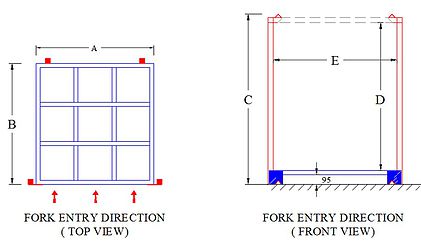

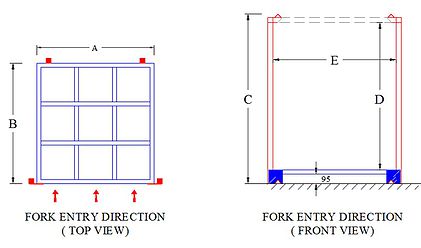

SKU Size (A)
Base Width		 Size (B)
Base Depth		 Size (C)
Total Height		 Size (D)
Internal Clear High		 Size (E)
Clear Entry
13-PT-445 1170mm 1200mm 1693mm 1471mm 1230mm
13-PT-1350 1320mm 1200mm 1693mm 1471mm 1350mm
13-PT-60 1490mm 1520mm 1693mm 1471mm 1520mm


Palletainer (PT-445)   Palletainer (PT-1350)   Palletainer (PT-60)
