Cat Ladder

Cat Ladder

Product Description

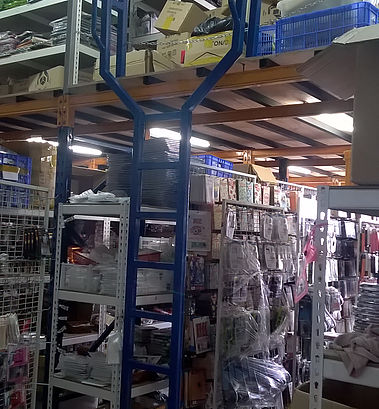

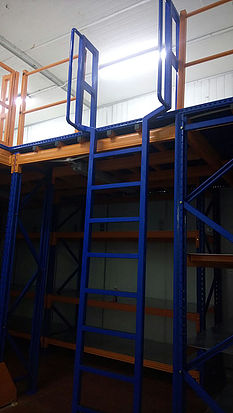

Gold Wind Cat Ladder designed with wide opening access to decking. both side with handle bar for safety. Cutomer make required special epoxy powder coated colour as per request.

SKU 01-CL400-2465

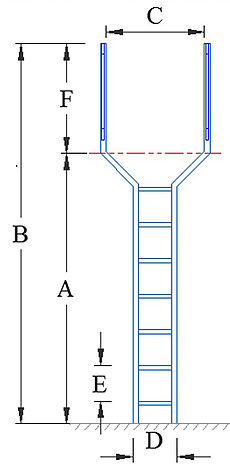

Size (A) - Deck Height 2465mm
Size (B) - Base Length 3465mm
Size (C) - Staircase Width 1000mm
Size (D) - Tread Width 400mm
Size (E) - Tread Height 300mm
Size (F) - Rails Heigth 1000mm
Origin Malaysia
Materials Steel
Finishing Epoxy Powder Coated In Blue
Handrail 33mm Hollow Steel Pipe
Tread Size 300mm (W)
Materials Square hollow section 40mm x 40mm x 1.6t
Frame Work Square hollow section 50 x 50 x 1.6t
Total Step 7 steps
Weight 180 kgs
