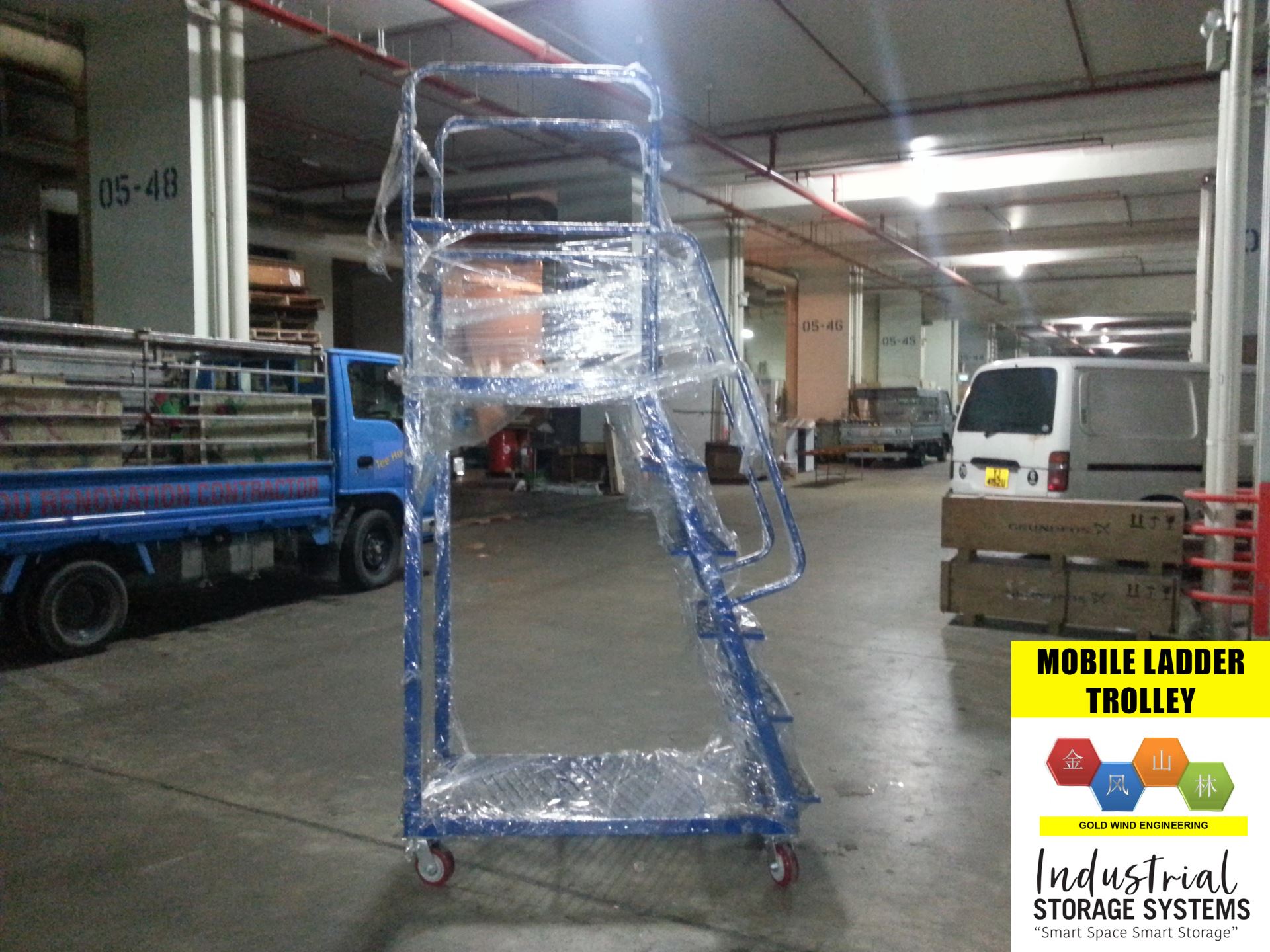

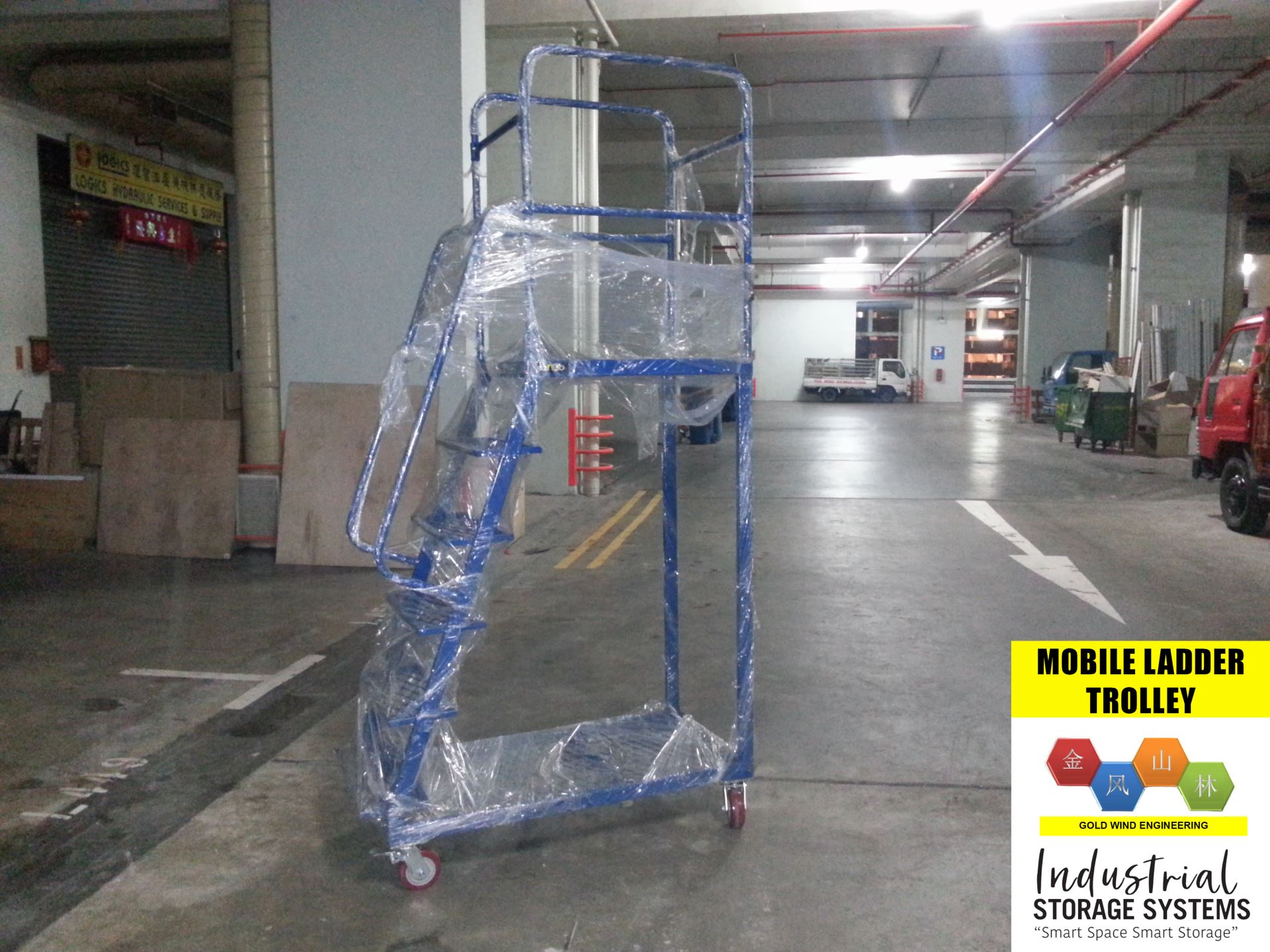

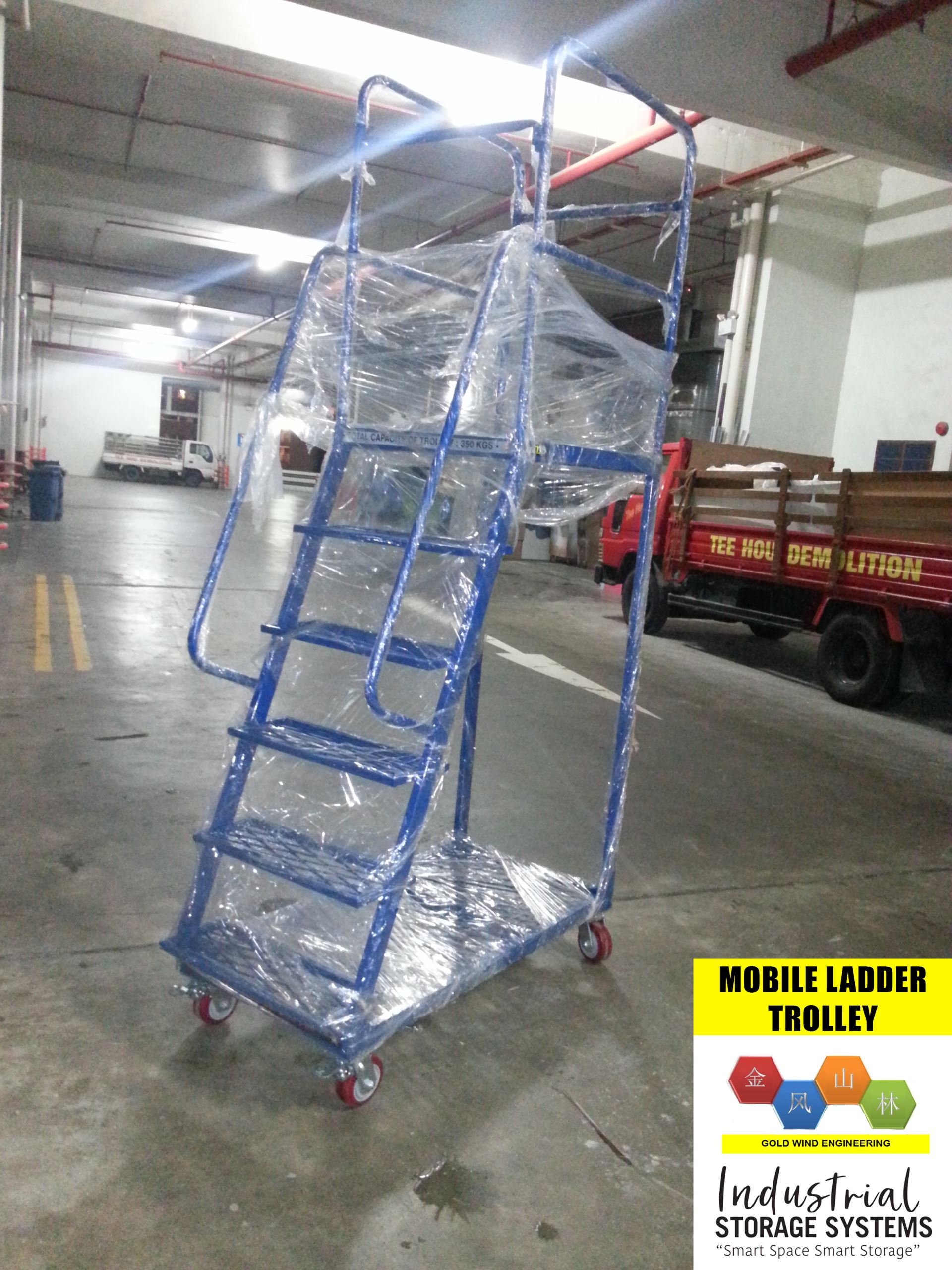

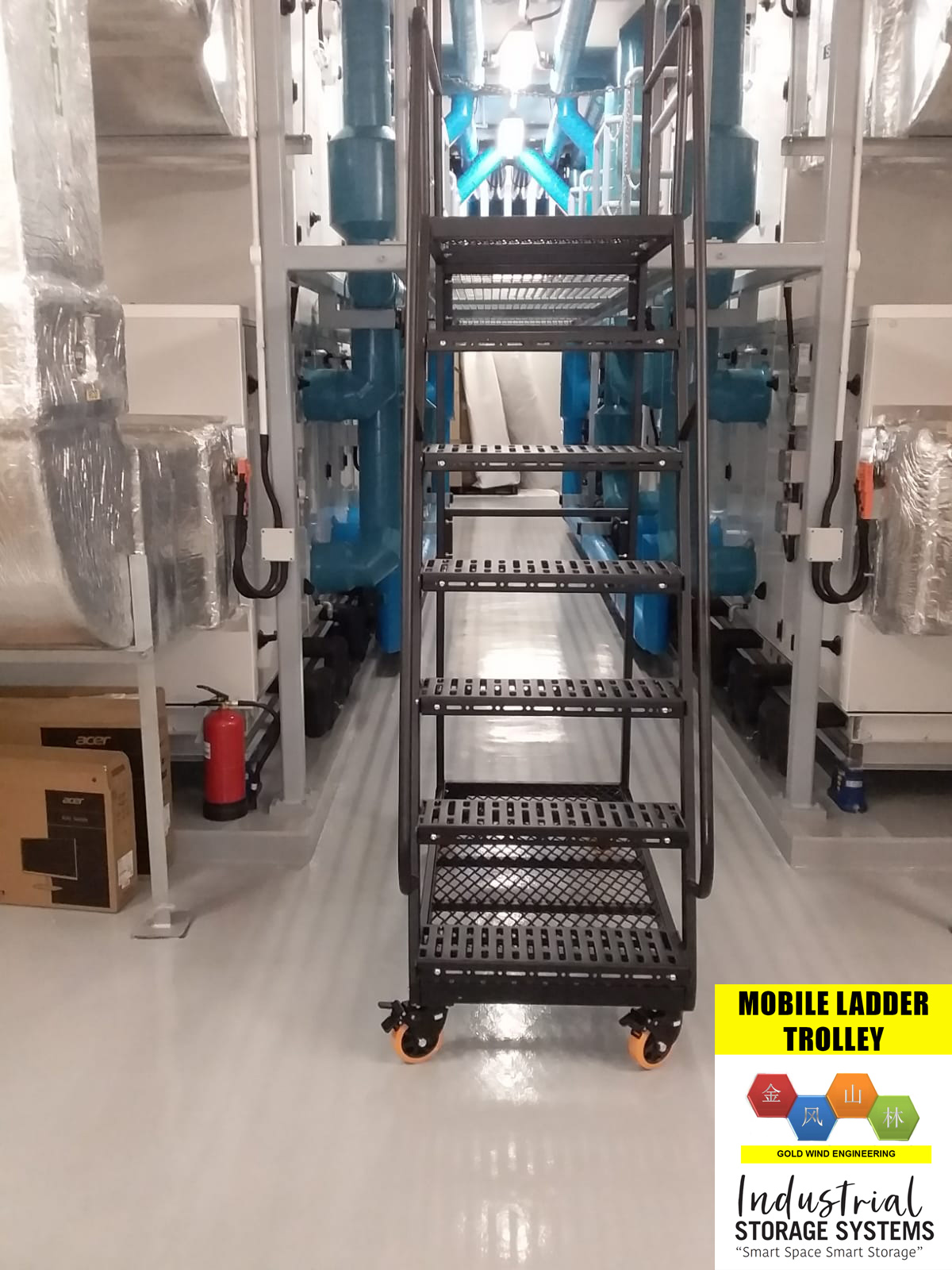

Mobile Ladder Trolley (MLT)

Mobile Ladder Trolley (MLT)


  • Origin: Malaysia
  • Materials: Steels
  • Finishing: Epoxy Powder Coated in Blue

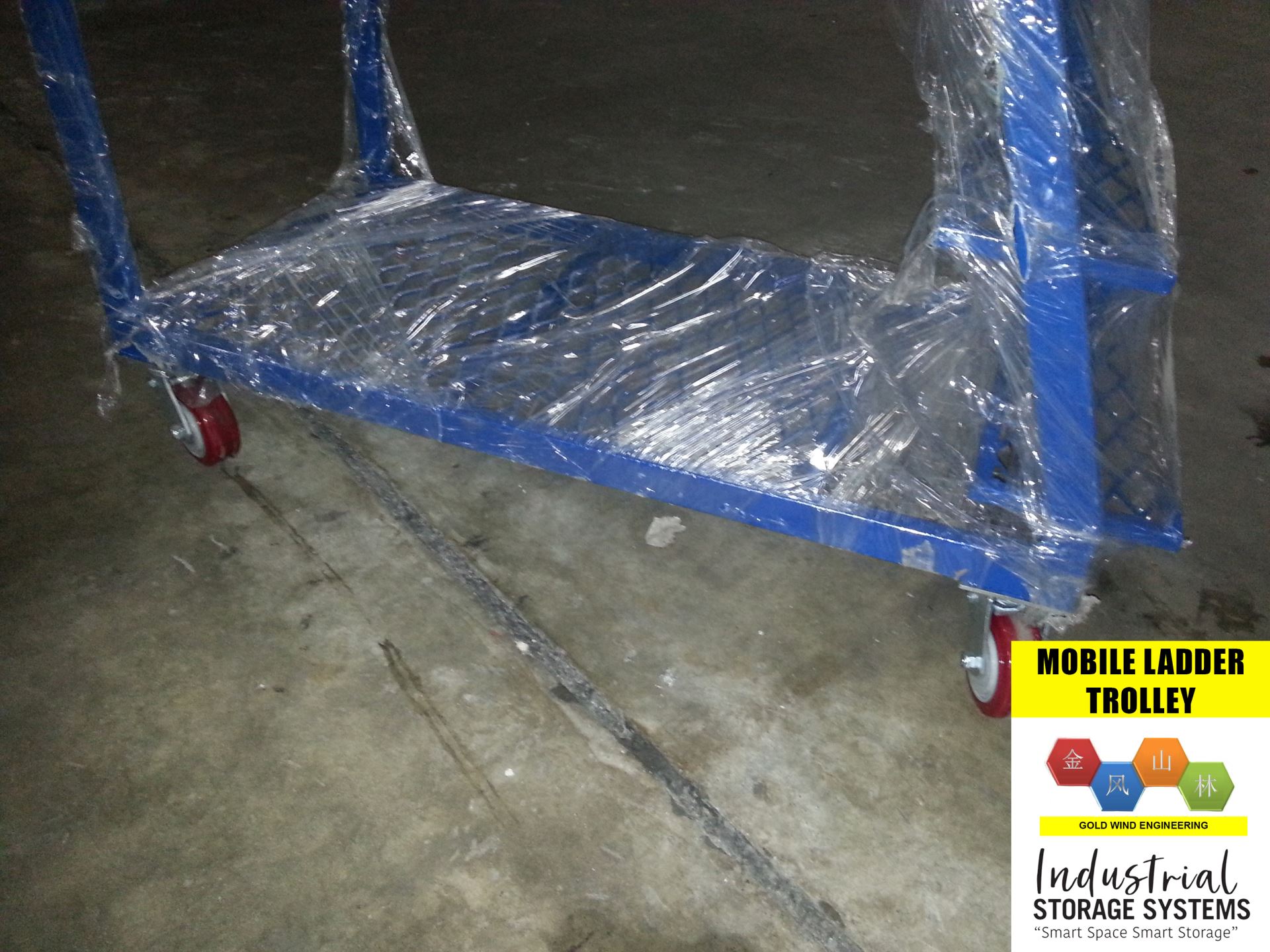

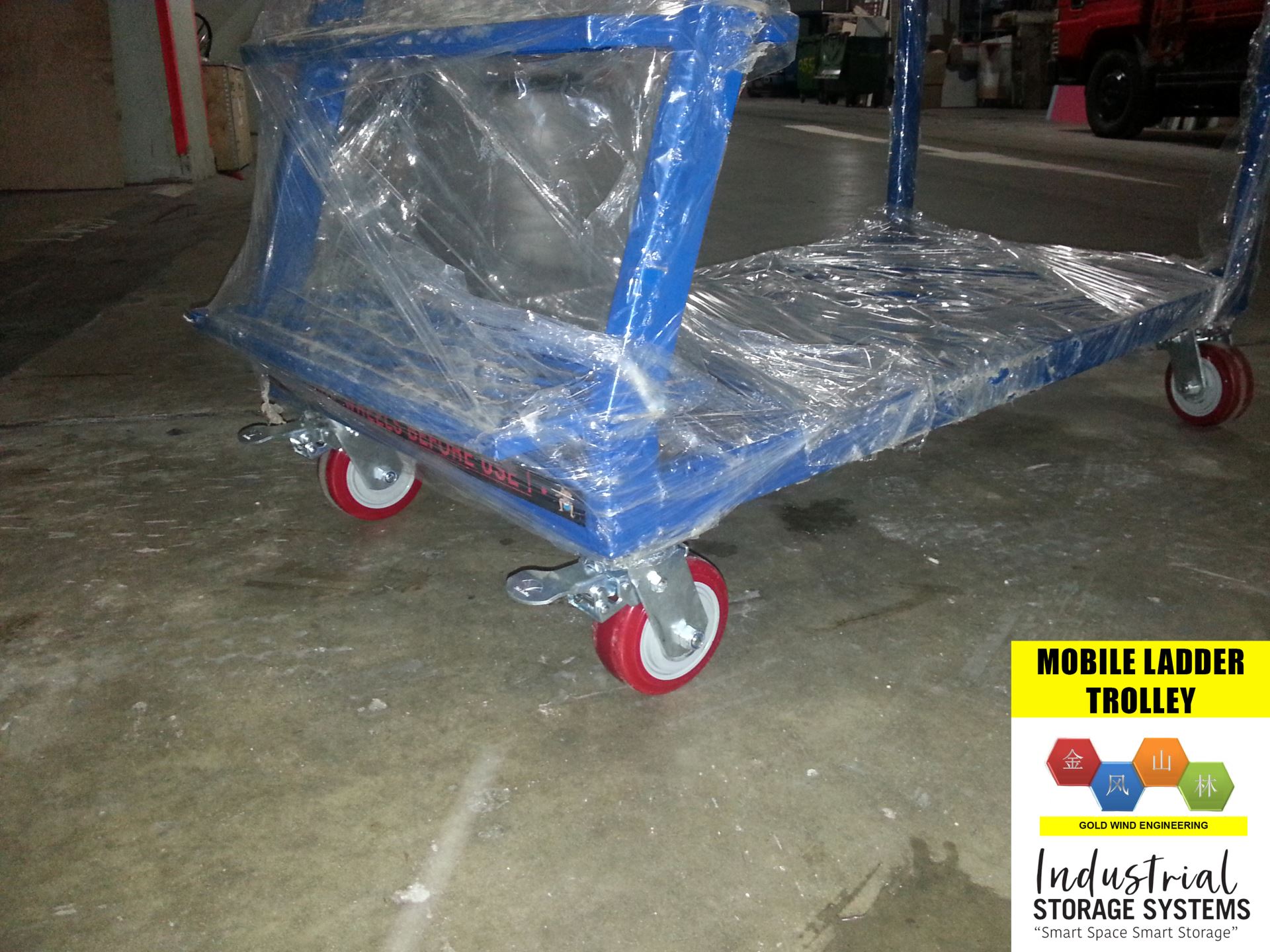

  • Wheel: 5″ PU Cast Iron
  • Loading: Top 150kgs UDL / Bottom 350kgs UDL
  • Capacity: 500 kgs

Product Description

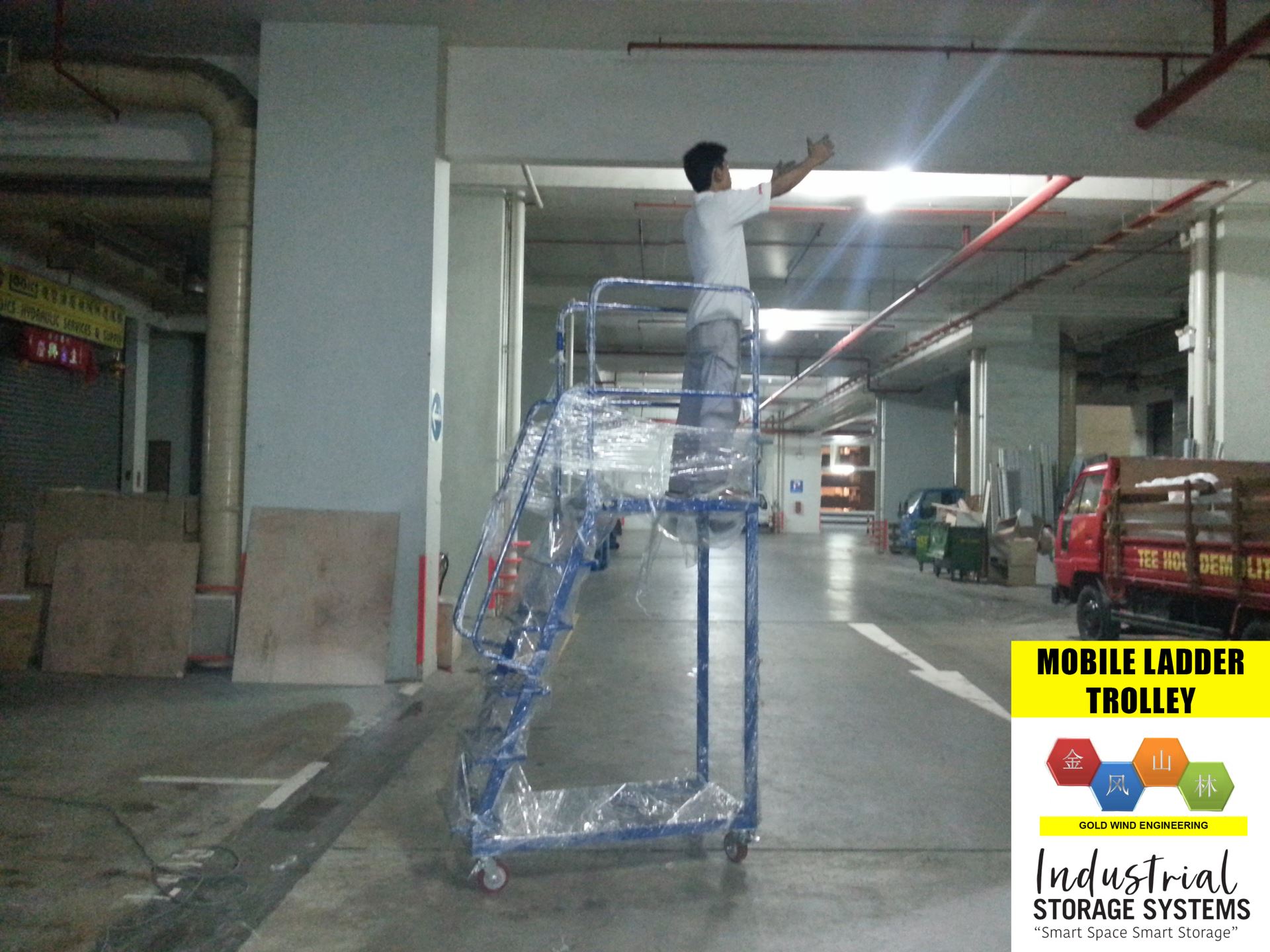

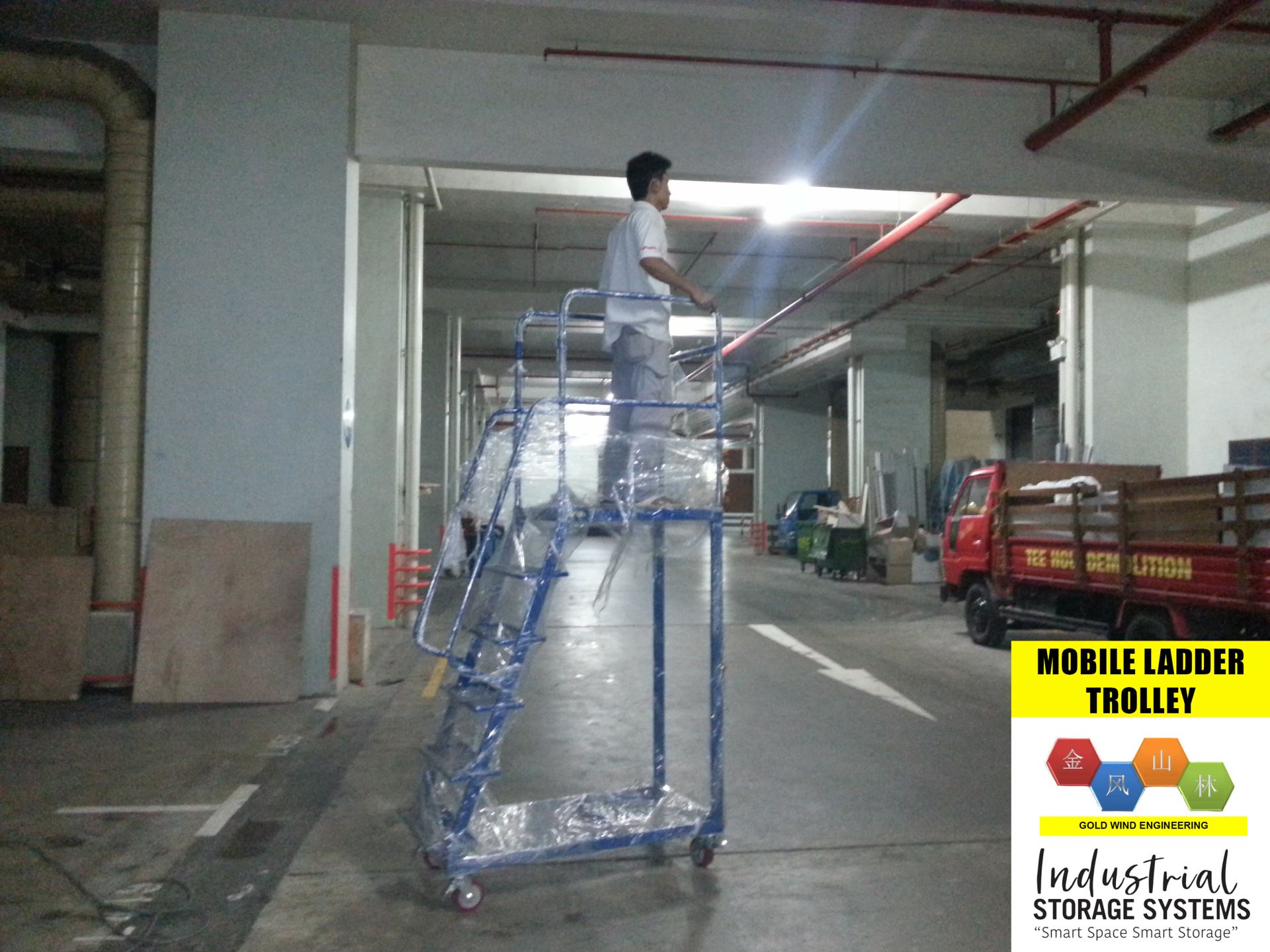

MLT Mobile Ladder is designed for picking goods with a standing platform.

The unique designed of the ladder trolley enable use as trolley and ladder at the same time. this function will be a great help for those who work picking goods between 3 ~ 4.5 meters.

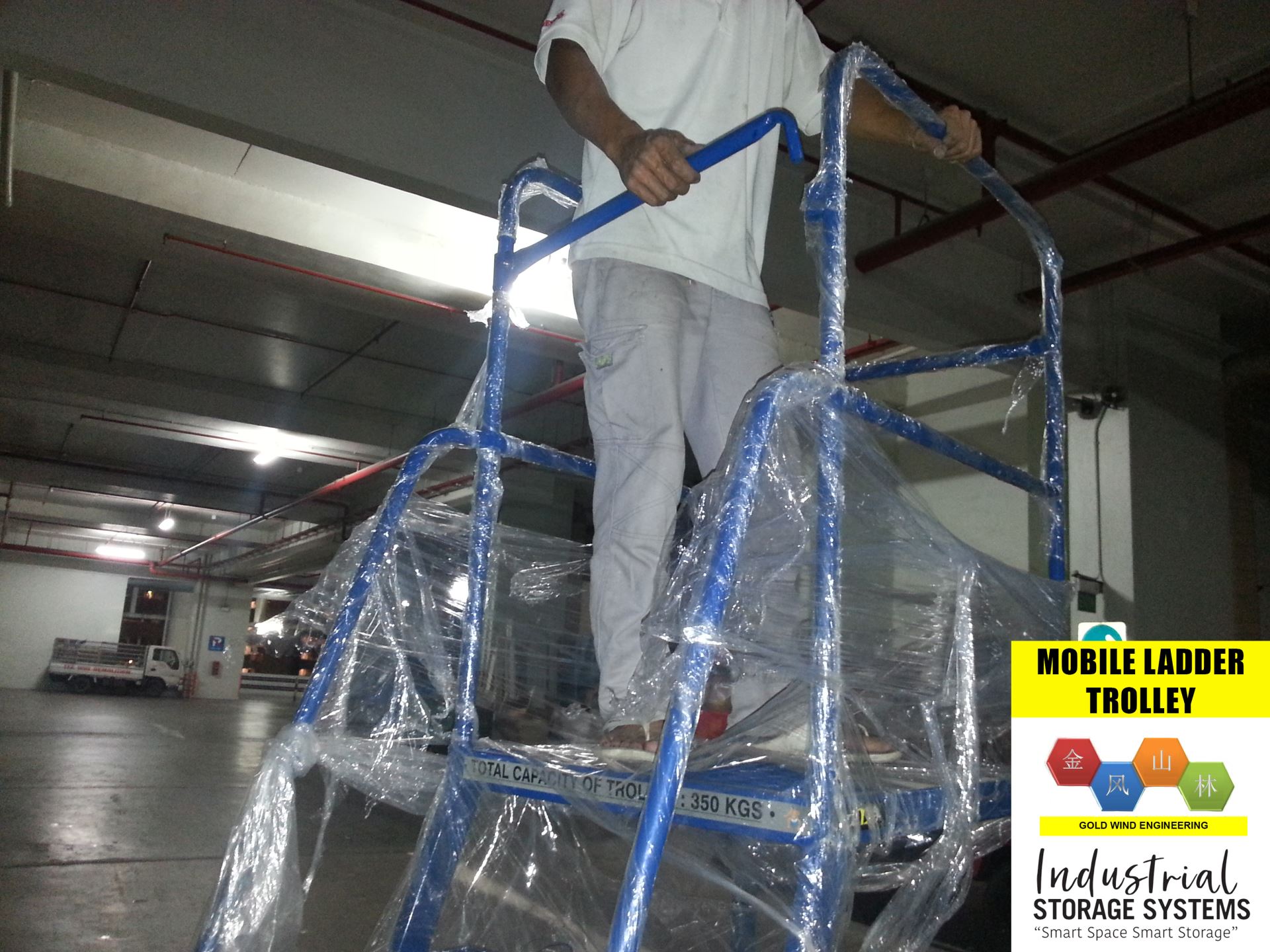

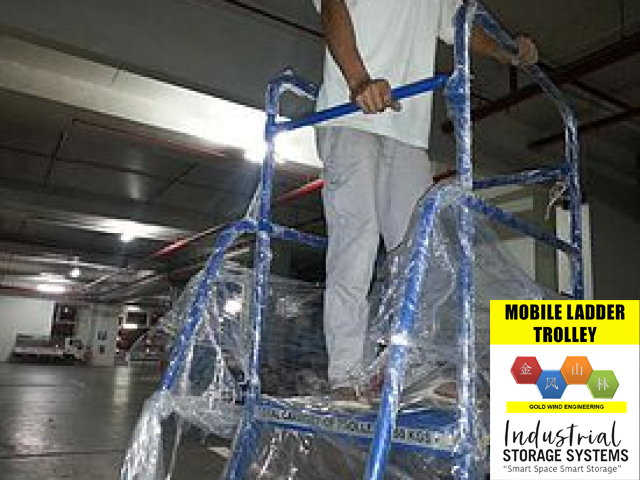

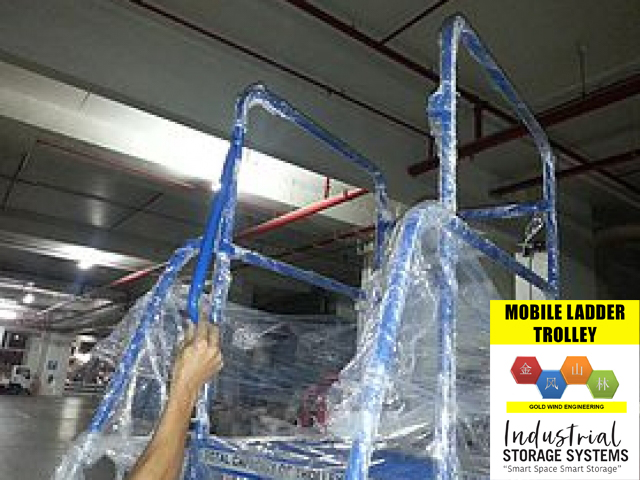

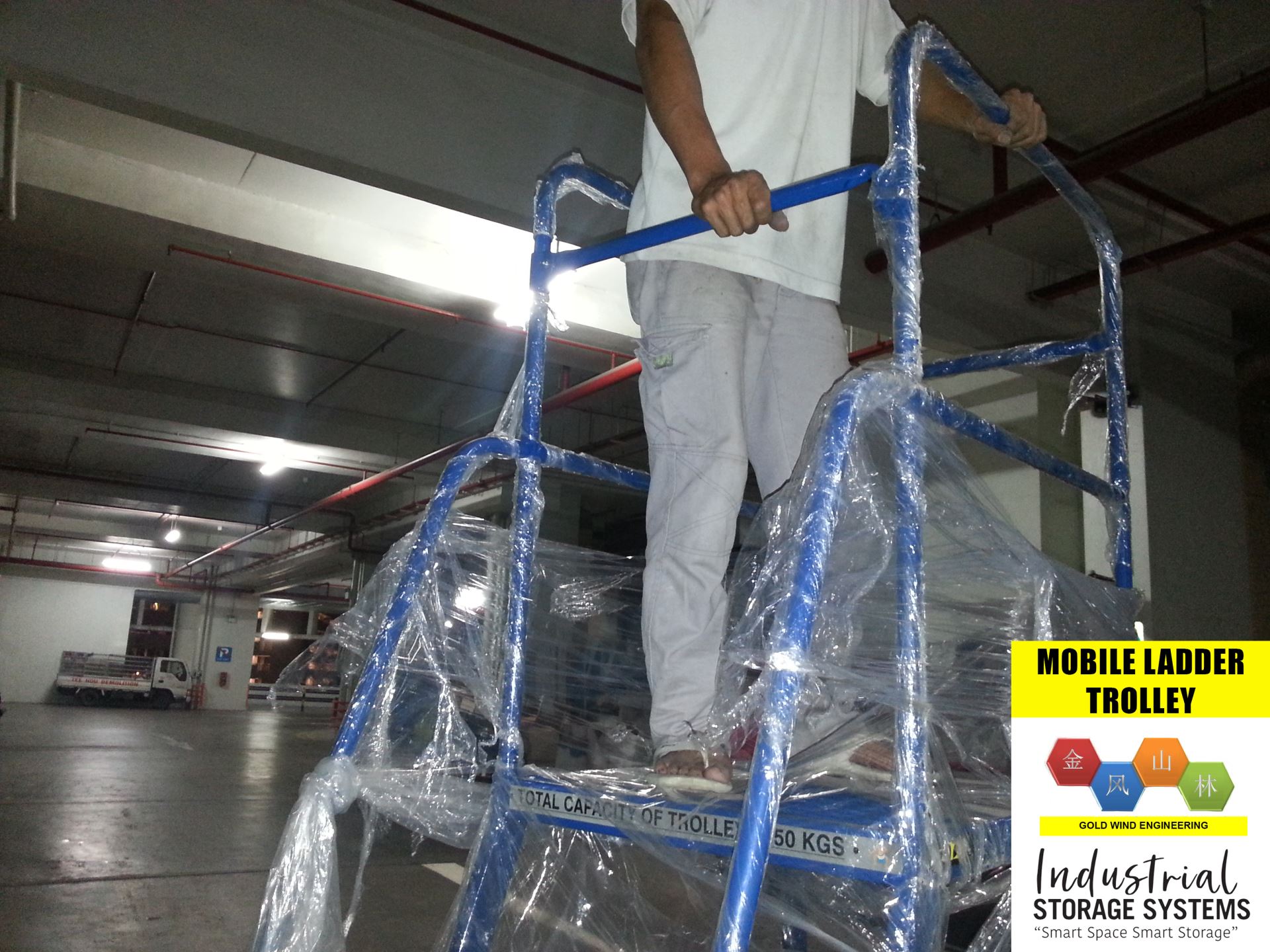

In order to reduce risk at work during standing on the platform. The safety bar can prevent staff fall down from the platform.

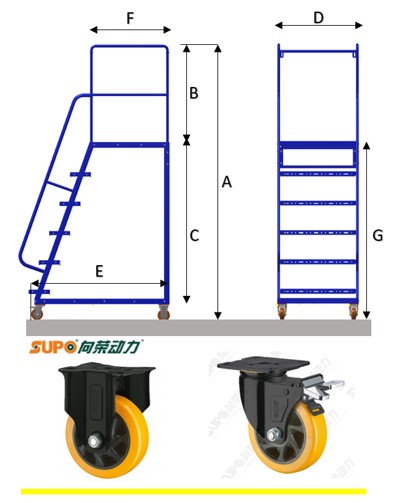

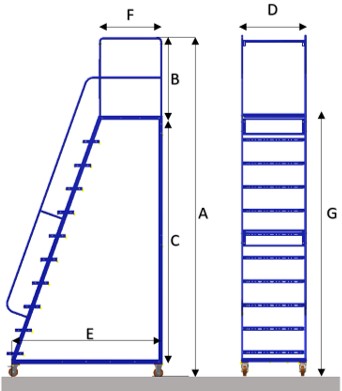

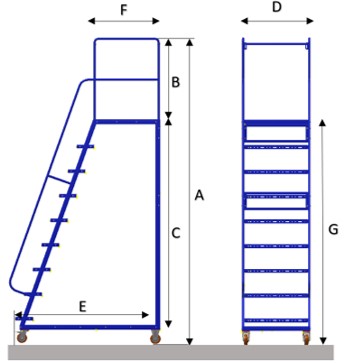

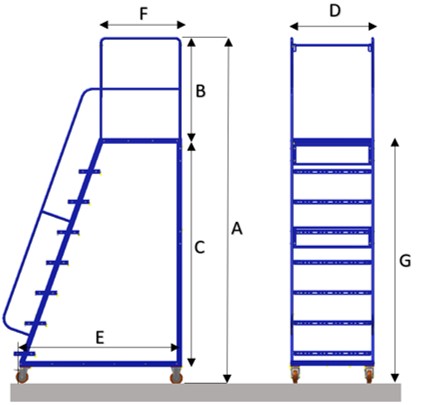

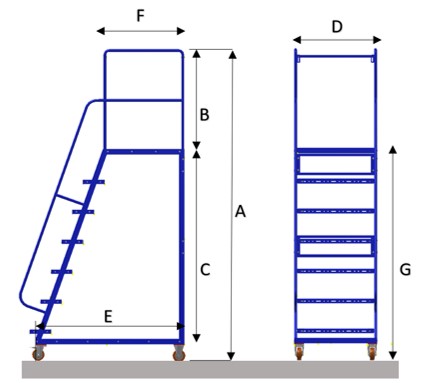

SKU Size (a)
Overall Height		 Size (b)
Handrail Height		 Size (c)
Internal Store		 Size (d)
Width of Ladder		 Size (e)
Base Length		 Size (f)
Deck Length		 Size (g)
Floor to Deck
01-MLT-1600 SET 2594mm 916mm 1522mm 760mm 1269mm 750mm 1691mm
01-MLT-1900 SET 2868mm 916mm 1903mm 760mm 1369mm 750mm 1966mm
01-MLT-2200 SET 3144mm 916mm 1970mm 760mm 1469mm 750mm 2241mm
01-MLT-2500 SET 3434mm 916mm 2310mm 760mm 1569mm 750mm 2518mm
01-MLT-2700 SET 3707mm 916mm 2520mm 760mm 1669mm 750mm 2791mm
01-MLT-3000 SET 3982mm 916mm 2795mm 760mm 1769mm 750mm 3066mm

Mobile Ladder Trolley (5-Step)   Mobile Ladder Trolley (6-Step)   Mobile Ladder Trolley (7-Step)
Mobile Ladder Trolley (5-Step)   Mobile Ladder Trolley (6-Step)   Mobile Ladder Trolley (7-Step)

Mobile Ladder Trolley (8-Step)   Mobile Ladder Trolley (9-Step)   Mobile Ladder Trolley (10-Step)
Mobile Ladder Trolley (8-Step)   Mobile Ladder Trolley (9-Step)   Mobile Ladder Trolley (10-Step)
