Foldable Wire Mesh Cage PDF
Pallet Wire Mesh Cage Containers for Bulk Material Handling:
Gold Wind supply foldabel wire mesh cage for material handling and storage in supermarket, shops and industries
the ideal choice for better bulk material handling.
Why Choose Post Galvanized Pallet Containers instead of Pre-galvanized one?
Post-galvanized wire mesh pallet containers are made of galvanized after welding wire mesh panels for a lifetime of rust resistance. Xiaoye never supplies pre-galvanized wire containers though it costs less. Because the welding spots of pre-galvanized wire containers will get rusty with moisture or high humidity. As a result, the containers will lose the structural stability.

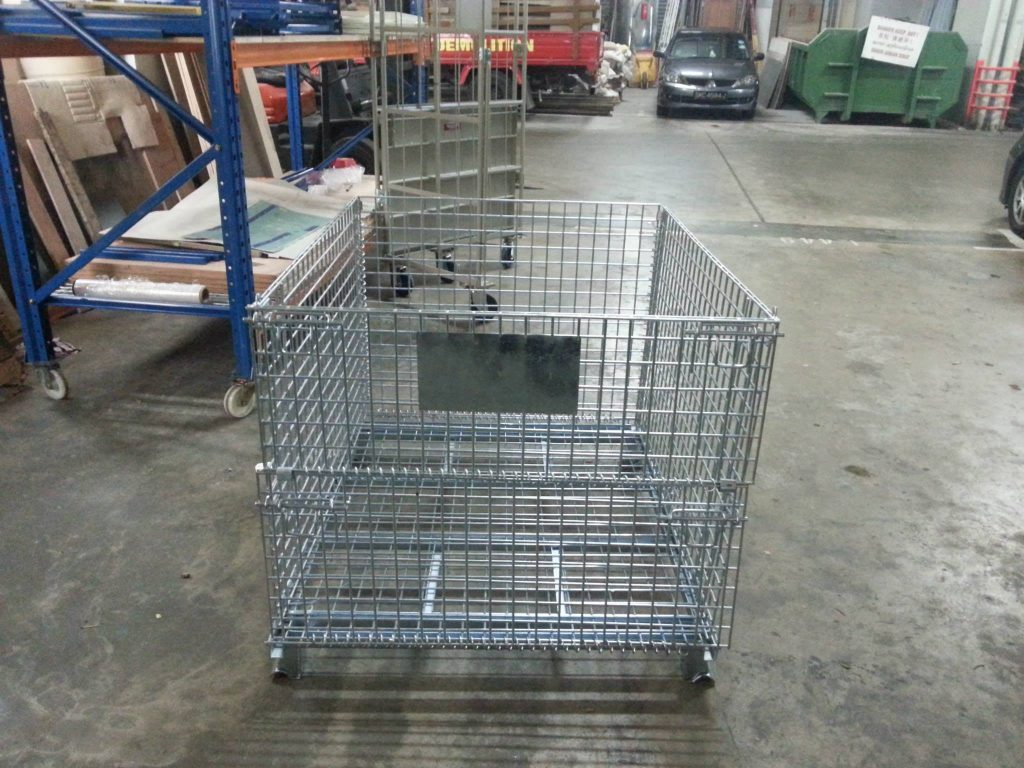

Benefits and Uses of Wire Mesh Pallet Cage Containers:
Foldable pallet wire baskets or cage containers make handling, transporting and storing bulk partsand materials easy. They are reusable containing systems that deliver high visibility savings. These tough, welded wire containers provide quick content identification, promote better material flow, and more efficient stock control.
Specifications: Pallet cages and containers can be described by its loading capacity, bulk measurement, cage dimensions (length, width and height), cage or containers legs height, wire diameter and mesh size.
(No Wheel & No Top Cover)
Size (a): 890mm (Overall Height)
Size (b): 150mm (Floor to Deck)
Size (c): 1200mm (Overall Width)
Size (d): 1000mm (Overall Depth)
Thickness: 5.8mm (Overall Width)
Materials: Steel Bar
Treatment: Post Galvanized
Max Stack: 4 stack of 1000kgs (Including bottom)
Capacity: 1500 kgs
Product Code: 132-FWMC-091012
Size (a): 950mm (Overall Height)
Size (b): 150mm (Floor to Deck)
Size (c): 1200mm (Overall Width)
Size (d): 1000mm (Overall Depth)
Thickness: 5.8mm (Overall Width)
Materials: Steel Bar
Treatment: Post Galvanized
Max Stack: 4 stack of 1000kgs (Including bottom)
Capacity: 1500 kgs

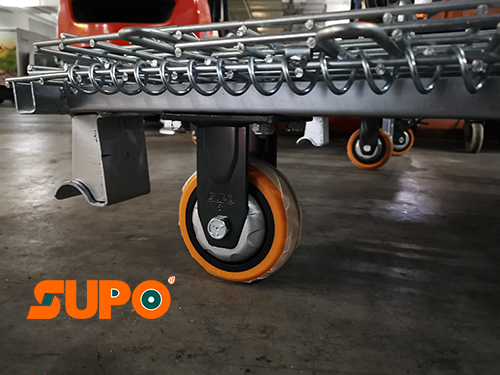

Wheel Load: Max 800 kgs UDL / 4 Wheel
Note: This product with 4 wheels but without top cover
Product Code: 132-FWMC-091012W
Size (a): 950mm (Overall Height)
Size (b): 150mm (Floor to Deck)
Size (c): 1200mm (Overall Width)
Size (d): 1000mm (Overall Depth)
Thickness: 5.8mm (Overall Width)
Materials: Steel Bar
Treatment: Post Galvanized
Max Stack: 4 stack of 1000kgs (Including bottom)
Capacity: 1500 kgs
Wheel Load: Max 800 kgs UDL / 4 Wheel
Product Code: 132-FWMC-091012WC
Size (a): 950mm (Overall Height)
Size (b): 150mm (Floor to Deck)
Size (c): 1200mm (Overall Width)
Size (d): 1000mm (Overall Depth)
Thickness: 5.8mm (Overall Width)
Materials: Steel Bar
Treatment: Post Galvanized
Max Stack: 4 stack of 1000kgs (Including bottom)
Capacity: 1500 kgs
Product Code: 132-FWMC-091012C
