Cable Racking
Heavy cable racking is one of the racking designed according to clients’ demands in recent years which are also widely used in the industry of cable, lifting, electron and other industries that can use the cable.
It usually works together with forklifts that can store and pick up freely the shaft in any location, meanwhile, it can also pick up the cable on any shaft, which makes the operation more easily and safely.
All systems are available in a variety of sizes to fit virtually any installation.
Cable Reel Rack:
1.500kgs-1 tons capacity
2.Different uprights frame for different loading requests
3. Easy Adjustable Steel Bar for difference height
Standard Ex-Stock Size
Height
2400mm , 3000mm , 3600mm , 4800mm
Depth
600mm , 900mm , 1200mm
Length
1000mm , 1250mm
Loading
500kgs ~ 800 kgs
* Others Size available upon request.

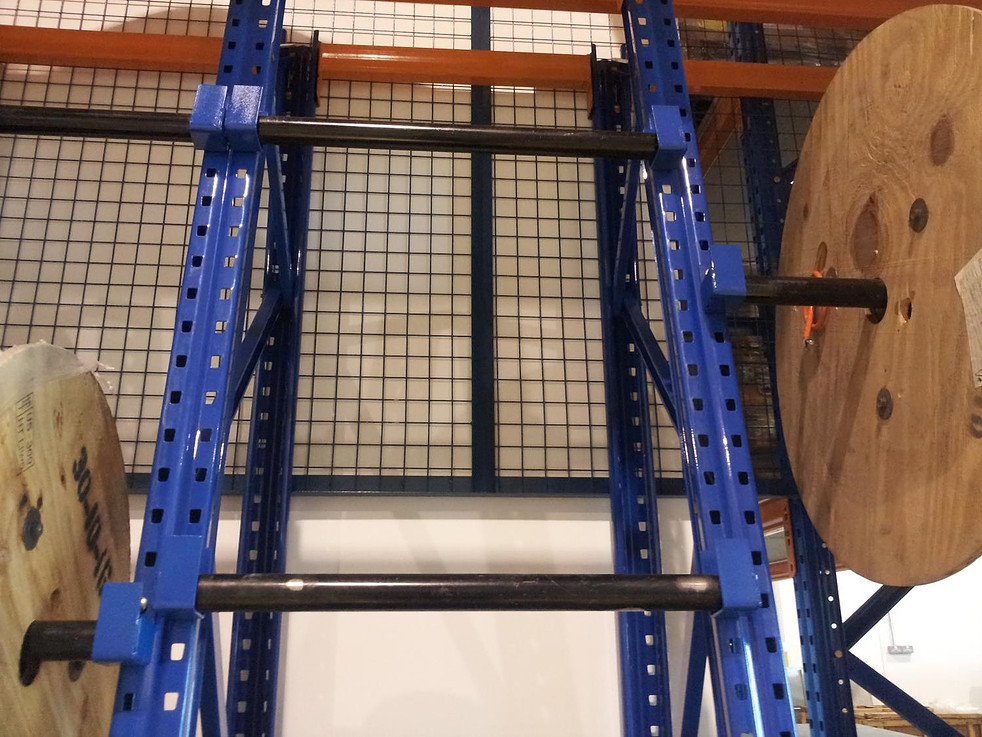

Project Photo
